UNIDENTIFIED
SNB-C035
Data bus: 16-bit, ISA
Size: Half-length, half-height card
Hard drives supported: Two IDE Interface (AT)
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
Maximum heads/cyl.: 8 heads and 1024 cylinders
|

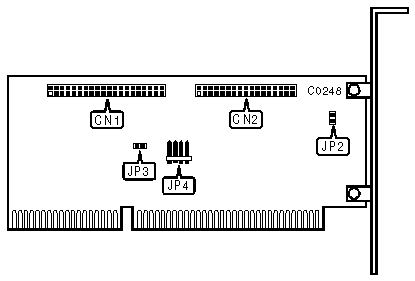

CONNECTIONS | |
|
Function |
Location |
|
40-pin AT Interface (IDE) control cable connector-internal |
CN1 |
|
34-pin data cable connector-floppy drive |
CN2 |
|
4-pin connector-drive active LED |
JP4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Floppy drive port address is 3F0-3F7h |
JP2 |
open |
|
Floppy drive port address is 370-377h |
JP2 |
closed | |
| » |
IO CHRDY (I/O Channel Ready) disabled |
JP3 |
open |
|
IO CHRDY (I/O Channel Ready) enabled |
JP3 |
closed | |
