Data bus:	16-bit, ISA
Size:	Three/quarter-length, full-height card
Hard drive supported:	Up to seven SCSI drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

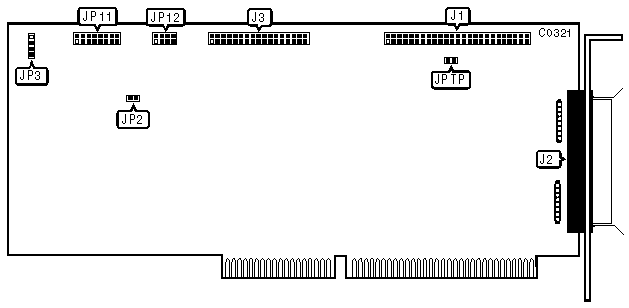

CONNECTIONS
Function	Location
50-pin SCSI connector - internal	J1
50-pin SCSI connector - external	J2
34-pin control cable connector - floppy drive	J3
4-pin connector - Drive active LED	JP3

BIOS ADDRESS*
Address		JP11/jumper 1	JP11/jumper 2	JP11/jumper 3
»	Disabled	open	open	open
	C400h	open	open	closed
	C800h	open	closed	open
	CC00h	open	closed	closed
	D000h	closed	open	open
	D400h	closed	open	closed
	D800h	closed	closed	open
	DC00h	closed	closed	closed

I/O PORT ADDRESS*
Address	JP12/jumper 1	JP12/jumper 2	JP12/jumper 3
330h	open	open	open
340h	open	open	closed
310h	open	closed	open
230h	open	closed	closed
240h	closed	open	open
210h	closed	open	closed
130h	closed	closed	open
140h	closed	closed	closed

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Floppy drive enabled	JP2	closed
	Floppy drive disabled	JP2	open
»	SCSI Termination enabled	JPTP	closed
	SCSI Termination disabled	JPTP	open
»	I/O and BIOS Address is software configured	JP12/jumper 4	open
	I/O and BIOS Address is jumper configured	JP12/jumper 4	closed

MISCELLANEOUS TECHNICAL NOTES

* When JP12/jumper 4 is open (factory default), I/O and BIOS address is software configured. All other jumpers are factory configured - do not alter
