UNIDENTIFIED

PM-510D REV. 2

Data bus:

16-bit, ISA

Size:

Half-length, half-height card

Hard drive supported:

Two IDE (AT) interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

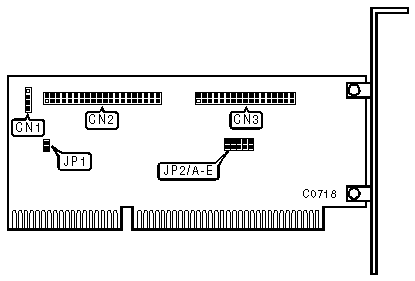

CONNECTIONS

Function

Location

4-pin connector - drive active LED

CN1

40-pin IDE (AT) Interface connector

CN2

34-pin control cable connector - floppy drive

CN3

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

HDD enabled

JP1

closed



HDD disabled

JP1

open

»

Floppy drive enabled

JP2/jumpers A-E

closed



Floppy drive disabled

JP2/jumpers A-E

open
