Data bus:	16-bit ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE (AT) interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

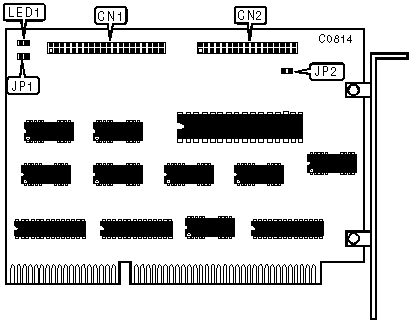

CONNECTIONS
Function	Location
40-pin IDE (AT) interface connector	CN1
34-pin control cable connector - floppy drive	CN2
2-pin connector - drive active LED	LED1

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	IOCHRDY disabled	JP1	open
	IOCHRDY enabled	JP1	closed
»	Single drive speed	JP2	open
	Dual drive speed	JP2	closed
