UNIDENTIFIED

MINI IDE CARD

Data bus:

16-bit ISA

Size:

Half-length, half-height card

Hard drive supported:

Two IDE(AT) drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

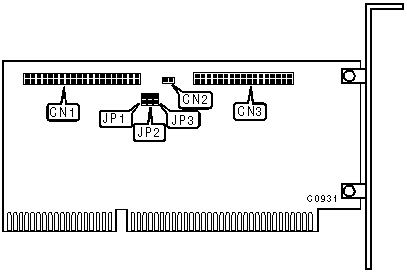

CONNECTIONS

Function

Location

40-pin primary IDE(AT) connector

CN1

2-pin connector - drive active LED

CN2

34-pin cable connector - floppy drive

CN3

USER CONFIGURABLE SETTINGS

Function

Location

Setting

IOCHRDY signal disabled

JP1

open

IOCHRDY signal enabled

JP1

closed

IDE(AT) interface enabled

JP2

open

IDE(AT) interface disabled

JP2

closed

Drive group 1 select

JP3

open

Drive group 2 select

JP3

closed
