UNIDENTIFIED
AT BUS/FLOPPY DISK CONTROLLER (VER. 2)
|
Data Bus |
16-bit ISA |
|
Card Size |
Half-length, half-height card |
|
Hard Drives supported |
Two IDE (AT) drives |
|
Floppy drives supported |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

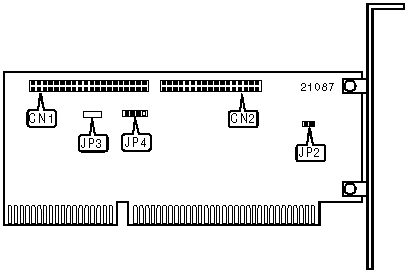

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
40-pin IDE (AT) Interface connector-internal |
CN1 |
4-pin connector - drive active LED |
JP4 |
|
34-pin control cable connector-floppy drive |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Floppy drive enabled |
JP2 |
Open |
|
Floppy drive disabled |
JP2 |
Closed | |
| » |
Factory configured - do not alter |
JP3 |
Unidentified |
