UNIDENTIFIED

MAGIC AT I/O PLUS CARD

Card Type

Multi I/O card

Hard Drives supported

Two IDE drives

Floppy drives supported

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

I/O options

Game port, serial ports (2), parallel port

Data Bus

16-bit ISA

Card Size

Half-length, full-height card

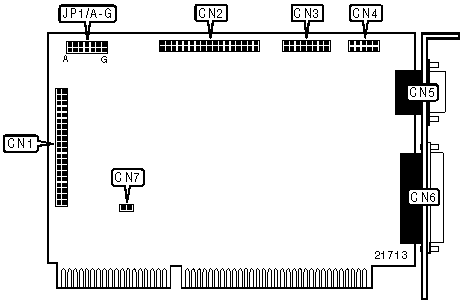

CONNECTIONS

Function

Location

Function

Location

40-pin primary IDE(AT) connector

CN1

9-pin serial port 1 - external

CN5

34-pin cable connector - floppy drive

CN2

25-pin parallel port - external

CN6

16-pin game port

CN3

2-pin connector - drive active LED

CN7

10-pin serial port 2 - internal

CN4



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Serial port 2 enabled

JP1/A

Closed



Serial port 2 disabled

JP1/A

Open



Serial port 1 enabled

JP1/B

Closed



Serial port 1 disabled

JP1/B

Open



Floppy drive interface enabled

JP1/C

Closed



Floppy drive interface disabled

JP1/C

Open



IDE(AT) interface enabled

JP1/D

Closed



IDE(AT) interface disabled

JP1/D

Open



Game port enabled

JP1/E

Closed



Game port disabled

JP1/E

Open

PARALLEL PORT ADDRESS SELECTION

Setting

JP1/F

JP1/G

LPT1 (378h)

Closed

Closed

LPT2 (278h)

Open

Closed

LPT3 (3BCh)

Closed

Open

Disabled

Open

Open
