AZTECH LABS, INC.

SOUND GALAXY NOVA 16 EXTRA

Card Type

Sound

Chipset Controller

Unidentified

I/O Options

CD-ROM interface (3), CD Audio in, game/MIDI port, Line in, Line out,Speaker out, Multimedia PC speaker out, PC speaker in, Microphone jack, Wave table synthesis interface, Volume control

Maximum DRAM

N/A

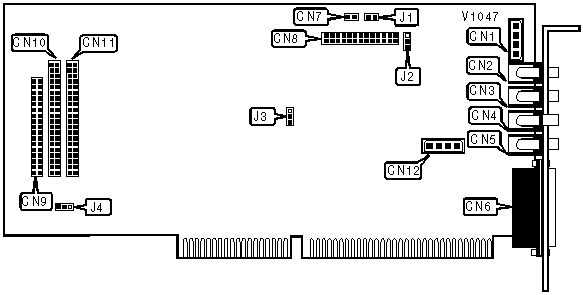

CONNECTIONS

Purpose

Location

Purpose

Location

CD audio in

CN1

PC speaker in

CN7

Line in

CN2

Wave table interface

CN8

Microphone

CN3

Sony CD-ROM

CN9

Line out

CN4

Mitsumi/Aztech CD-ROM

CN10

Speaker out

CN5

Panasonic CD-ROM

CN11

Game/MIDI port

CN6

Multimedia PC speaker out

CN12

PC SPEAKER AMPLIFICATION

Setting

J1

»

Low amplification

Open



High amplification

Closed

MICROPHONE TYPE

Type

J2

»

Condenser

Pins 1 & 2 closed



Carbon

Pins 2 & 3 closed

I/O BASE ADDRESS

Address

J4

»

220h - 22Fh

Pins 1 & 2 closed



240h - 24Fh

Pins 2 & 3 Closed

EEPROM

Setting

J3

»

Enabled

Pins 1 & 2 closed



Disabled

Pins 2 & 3 closed
