AMERICAN DATA AQUISITION CORPORATION

5508LF REV. 1-USI=2

Card Type

Data Aquisition

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

Analog input, digital input

Hard Drives supported

None

Floppy drives supported

None

Data Bus

8-bit ISA

Card Size

Half length

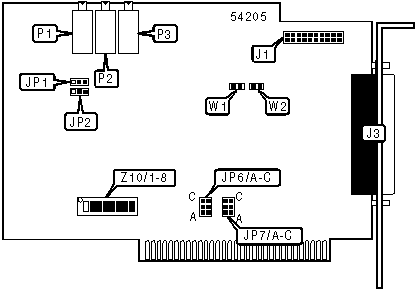

CONNECTIONS

Function

Label

Function

Label

Header connector to expansion board

J1

A/D converter range selector

P2

37-pin analog/digital signals connector

J3

Unipolar offset selector

P3

Bipolar offset selector

P1



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

8 channel mode

Z10/7

Off



16 channel mode

Z10/7

On

GAIN SELECTION

Function

W1

W2

»

Programmable gain options: x1, x2, x5, x10

Open

Open



Programmable gain options: x1, x2, x4, x8

Closed

Closed

DMA CHANNEL SELECTION

Channel

JP6/A

JP6/B

JP6/C

JP7/A

JP7/B

JP7/C

»

Disabled

Open

Open

Open

Open

Open

Open



1

Closed

Open

Open

Closed

Open

Open



2

Open

Closed

Open

Open

Closed

Open



3

Open

Open

Closed

Open

Open

Closed

A/D RANGE SELECTION

Polarity

Voltage

JP1

JP2

Z10/8

»

Bipolar

+ 10V

Pins 2 & 3 closed

Pins 2 & 3 closed

On



Bipolar

+ 5V

Pins 2 & 3 closed

Pins 1 & 2 closed

On



Unipolar

+0-10V

Pins 1 & 2 closed

Pins 1 & 2 closed

Off

BASE I/O ADDRESS SELECTION

Setting

Z10/1

Z10/2

Z10/3

Z10/4

Z10/5

Z10/6



000h

Off

Off

Off

Off

Off

Off



010h

Off

Off

Off

Off

Off

On



020h

Off

Off

Off

Off

On

Off



030h

Off

Off

Off

Off

On

On



040h

Off

Off

Off

On

Off

Off

»

120h

Off

On

Off

Off

On

Off



3B0h

On

On

On

Off

On

On



3C0h

On

On

On

On

Off

Off



3D0h

On

On

On

On

Off

On



3E0h

On

On

On

On

On

Off



3F0h

On

On

On

On

On

On

Note:

A total of 64 base address settings are available. The switches are a binary representation of the decimal memory addresses. Z10/1 is the Most Significant Bit and switch Z10/6 is the Least Significant Bit. The switches have the following decimal values: Z10/1=512, Z10/2=256, Z10/3=128, Z10/4=64, Z10/5=32, Z10/6=16. Turn off the switches and add the values of the switches to obtain the correct memory address. (On=1, Off=0)
