DIGI INTERNATIONAL, INC.

EISA C/X (VERSION 1)

Card Type

Serial controller

Chipset/Controller

Unidentified UART

I/O Options

Serial ports (2)

Maximum DRAM

1MB dual ported RAM

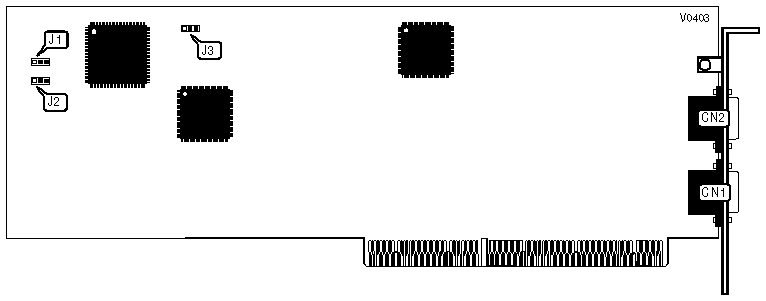

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 1

CN1

Serial port 2

CN2

Note:CN1 & CN2 are RS-422 ports which attach to serial concentrators.

FACTORY CONFIGURED SETTINGS

Jumper

Setting

J1

Pins 1 & 2 closed

J2

Pins 1 & 2 closed

J3

Pins 1 & 2 closed
