CHAINTECH COMPUTER COMPANY, LTD.

SQ-4232

Card Type

Sound card

Chip Set

Unidentified

I/O Options

Sony CD-ROM audio, Panasonic CD-ROM audio, Mitsumi CD-ROM audio, Game/MIDI port, microphone, volume, line in (2), speaker

Data Bus

16-bit ISA

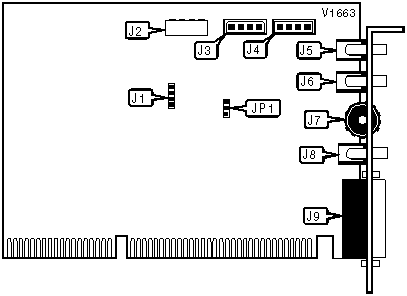

CONNECTIONS

Function

Label

Function

Label

PC speaker line in

J1

Mic. In

J6

Sony CD-ROM audio

J2

Volume control

J7

Panasonic CD-ROM audio

J3

Headphone/Speaker out

J8

Mitsumi CD-ROM audio

J4

Game/MIDI port

J9

Line in

J5



USER CONFIGURABLE SETTINGS

Function

Label

Position

Factory configured - do not alter

JP1

N/A
