DECISION COMPUTER INTERNATIONAL CO., LTD.

8 CHANNEL 8-BIT D/A CARD

Card Type

Data acquisition

Chipset

Signal Processing Technologies

I/O Options

Analog/digital I/O

Data Bus

8-bit ISA

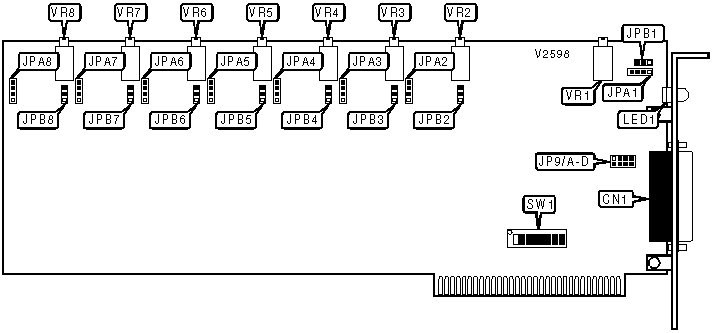

CONNECTIONS

Function

Label

Function

Label

Analog/digital I/O (see pinout below)

CN1

Channel 5 reference voltage

VR5

Channel 1 reference voltage

VR1

Channel 6 reference voltage

VR6

Channel 2 reference voltage

VR2

Channel 7 reference voltage

VR7

Channel 3 reference voltage

VR3

Channel 8 reference voltage

VR8

Channel 4 reference voltage

VR4



J1 PINOUT

Function

Pin

Function

Pin

+12V DC power

1

-12V DC power

14

Not used

2

Not used

15

Ground

3

Analog-to-digital channel 8 current

16

Analog-to-digital channel 8 voltage

4

Analog-to-digital channel 7 current

17

Analog-to-digital channel 7 voltage

5

Analog-to-digital channel 6 current

18

Analog-to-digital channel 6 voltage

6

Analog-to-digital channel 5 current

19

Analog-to-digital channel 5 voltage

7

Analog-to-digital channel 4 current

20

Analog-to-digital channel 4 voltage

8

Analog-to-digital channel 3 current

21

Analog-to-digital channel 3 voltage

9

Analog-to-digital channel 2 current

22

Analog-to-digital channel 2 voltage

10

Analog-to-digital channel 1 current

23

Analog-to-digital channel 1 voltage

11

Ground

24

Ground

12

-5V DC power

25

+5V DC power

13



USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

SW1/7

Off

»

Factory configured - do not alter

SW1/8

Off

»

Factory configured - do not alter

JPA1

Open

»

Factory configured - do not alter

JPA2

Open

»

Factory configured - do not alter

JPA3

Open

»

Factory configured - do not alter

JPA4

Open

»

Factory configured - do not alter

JPA5

Open

»

Factory configured - do not alter

JPA6

Open

»

Factory configured - do not alter

JPA7

Open

»

Factory configured - do not alter

JPA8

Open

»

Channel 1 voltage is 0V to 9V

JPB1

Pins 1 & 2 closed



Channel 1 voltage is -9V to 9V

JPB1

Pins 2 & 3 closed

»

Channel 2 voltage is 0V to 9V

JPB2

Pins 1 & 2 closed



Channel 2 voltage is -9V to 9V

JPB2

Pins 2 & 3 closed

»

Channel 3 voltage is 0V to 9V

JPB3

Pins 1 & 2 closed



Channel 3 voltage is -9V to 9V

JPB3

Pins 2 & 3 closed

»

Channel 4 voltage is 0V to 9V

JPB4

Pins 1 & 2 closed



Channel 4 voltage is -9V to 9V

JPB4

Pins 2 & 3 closed

»

Channel 5 voltage is 0V to 9V

JPB5

Pins 1 & 2 closed



Channel 5 voltage is -9V to 9V

JPB5

Pins 2 & 3 closed

»

Channel 6 voltage is 0V to 9V

JPB6

Pins 1 & 2 closed



Channel 6 voltage is -9V to 9V

JPB6

Pins 2 & 3 closed

»

Channel 7 voltage is 0V to 9V

JPB7

Pins 1 & 2 closed



Channel 7 voltage is -9V to 9V

JPB7

Pins 2 & 3 closed

»

Channel 8 voltage is 0V to 9V

JPB8

Pins 1 & 2 closed



Channel 8 voltage is -9V to 9V

JPB8

Pins 2 & 3 closed

BASE I/O ADDRESS

Setting

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6



000h

On

On

On

On

On

On



010h

On

On

On

On

On

Off



020h

On

On

On

On

Off

On



030h

On

On

On

On

Off

Off



040h

On

On

On

Off

On

On

»

2B0h

Off

On

Off

On

Off

Off



3B0h

Off

Off

Off

On

Off

Off



3C0h

Off

Off

Off

Off

On

On



3D0h

Off

Off

Off

Off

On

Off



3E0h

Off

Off

Off

Off

Off

On



3F0h

Off

Off

Off

Off

Off

Off

Note: A total of 64 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/1 is the Most Significant Bit and switch SW1/6 is the Least Significant Bit. The switches have the following decimal values: SW1/1=512, SW1/2=256, SW1/3=128, SW1/4=64, SW1/5=32, SW1/6=16. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0)

WAIT STATES

Setting

JP9/A

JP9/B

JP9/C

JP9/D

0

Closed

Open

Open

Open

1

Open

Closed

Open

Open

2

Open

Open

Closed

Open

3

Open

Open

Open

Closed

DIAGNOSTIC LED(S)

The function of the LED is unidentified.
