CREATIVE LABS, INC.

SOUNDBLASTER AWE64 VALUE (CT4500)

Card Type

Sound card

Chip Set

Creative Technology

Maximum Onboard Memory

Unidentified

I/O Options

Line in, microphone in, line out speaker out, game/MIDI port, audio in -CD-ROM , PC speaker connector

Data Bus

16-bit ISA

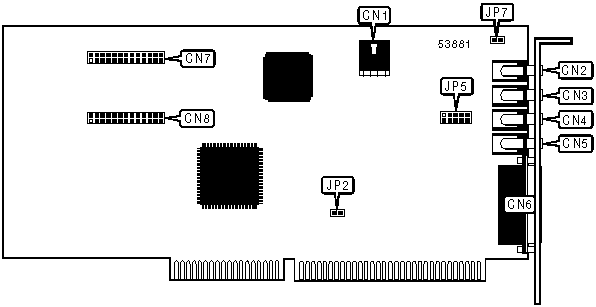

CONNECTIONS

Function

Label

Function

Label

Audio in - CD-ROM (ATAPI)

CN1

Game/MIDI port

CN6

Line in

CN2

Header to upgrade module

CN7

Microphone in

CN3

Header to upgrade module

CN8

Line out

CN4

PC speaker connector

JP7

Speaker out

CN5



USER CONFIGURABLE SETTINGS

Function

Label

Position



MP-401 enabled

JP2

Closed



MP-401 disabled

JP2

Open

»

Factory configured – do not alter

JP5

Unidentified

MEMORY CONFIGURATION

Note: To upgrade memory, install memory upgrade in CN7 & CN8.
