DOLPHIN PERIPHERALS, LLC.

FASTISA-4001

Card Type

Parallel card

Chip Set

Sun

I/O Options

Parallel port

Data Bus

16-bit ISA

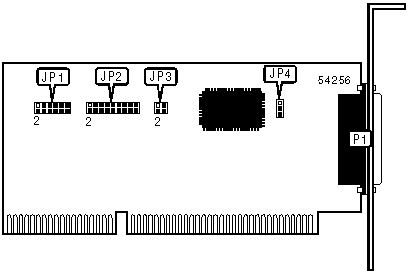

CONNECTIONS

Function

Label

Parallel port

P1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Printer installed has a buffer

JP4

Pins 2 & 3 closed



Printer installed does not have a buffer

JP4

Pins 1 & 2 closed

PARALLEL PORT ADDRESS SELECTION

Setting

JP1



3BC

Pins 1 & 2 closed

»

378

Pins 3 & 4 closed



278

Pins 5 & 6 closed



268

Pins 7 & 8 closed



27C

Pins 9 & 10 closed



26C

Pins 11 & 12 closed

PARALLEL PORT INTERRUPT SELECTION

IRQ

JP2



3

Pins 1 & 2 closed



4

Pins 3 & 4 closed

»

5

Pins 5 & 6 closed



7

Pins 7 & 8 closed



9

Pins 9 & 10 closed



10

Pins 11 & 12 closed



11

Pins 13 & 14 closed



12

Pins 15 & 16 closed



15

Pins 17 & 18 closed

PARALLEL PORT MODE SELECTION

Setting

JP3

»

Bi-Directional (EPP/ECP)

Pins 1 & 2 closed



Uni-directional

Pins 3 & 4 closed
