CREATIVE LABS, INC.

SOUNDBLASTER AWE64 VALUE (CT4520)

Card Type

Sound card

Chip Set

Creative Technology

Maximum Onboard Memory

128MB DRAM (EDO supported) , Unidentified

I/O Options

Game/MIDI port, line in, microphone in (2), line out (2), speaker out (2), PC speaker connector, Audio in CD-ROM, memory upgrade connector, feature connector

Card Size

Half-length, full-height card

Data Bus

16-bit ISA

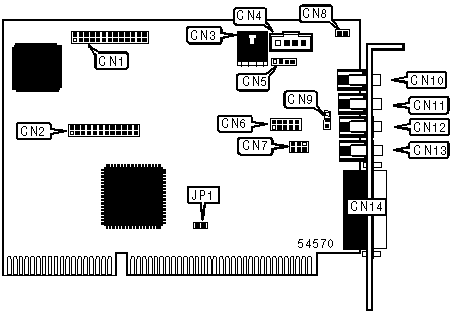

CONNECTIONS

Function

Label

Function

Label

Feature connector

CN1

PC speaker connector

CN8

Memory upgrade connector

CN2

microphone in internal

CN9

Audio in CD-ROM (ATAPI)

CN3

Line in

CN10

Unidentified

CN4

microphone in external

CN11

TAD connector

CN5

Line out external

CN12

MB PRO connector

CN6

Speaker out external

CN13

Speaker/line out internal

CN7

Game/MIDI port

CN14

USER CONFIGURABLE SETTINGS

Function

Label

Position

MPU-401 enabled

JP1

Closed

MPU-401 disabled

JP1

Open
