LONGSHINE MICROSYSTEM, INC.

LCS-881N1

Card Type

Memory card

Chipset/Controller

N/A

I/O Options

N/A

Maximum DRAM

32MB

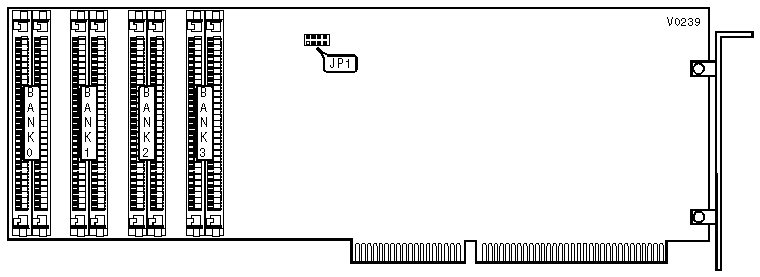

MEMORY CARD CONFIGURATION

Number of Memory cards installed

JP1

»

1

Pins 1 & 2 closed



2

Pins 3 & 4 closed



3

Pins 5 & 6 closed



4

Pins 7 & 8 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

512KB

(2) 256K x 9

None

None

None

1MB

(2) 256K x 9

(2) 256K x 9

None

None

1.5MB

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

None

2MB

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

2MB

(2) 1M x 9

None

None

None

2.5MB

(2) 1M x 9

(2) 256K x 9

None

None

3MB

(2) 1M x 9

(2) 256K x 9

(2) 256K x 9

None

3.5MB

(2) 1M x 9

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

4MB

(2) 1M x 9

(2) 1M x 9

None

None

4.5MB

(2) 1M x 9

(2) 1M x 9

(2) 256K x 9

None

5MB

(2) 1M x 9

(2) 1M x 9

(2) 256K x 9

(2) 256K x 9

6MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

None

6.5MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

(2) 256K x 9

8MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

8MB

(2) 4M x 9

None

None

None

16MB

(2) 4M x 9

(2) 4M x 9

None

None

24MB

(2) 4M x 9

(2) 4M x 9

(2) 4M x 9

None

32MB

(2) 4M x 9

(2) 4M x 9

(2) 4M x 9

(2) 4M x 9
