NEWCOM, INC.

HIGH FIDELITY 16I SOUND CARD

Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

None

I/O Options

CD-ROM audio (3), CD-ROM interface (3), game port, IDE interface, line in, line out, microphone, speaker, wavetable

Data Bus

16-bit ISA

Floppy drives supported

None

CONNECTIONS

Function

Label

Function

Label

Game port

CN1

Panasonic CD-ROM interface

J6

Wavetable

CN2

IDE interface

J7

Speaker

J1

Microphone

J9

Line out

J2

Mitsumi CD - audio in

JP1

Line in

J3

Sony CD - audio in

JP2

Sony CD-ROM interface

J4

Panasonic CD - audio in

JP3

Mitsumi CD-ROM interface

J5

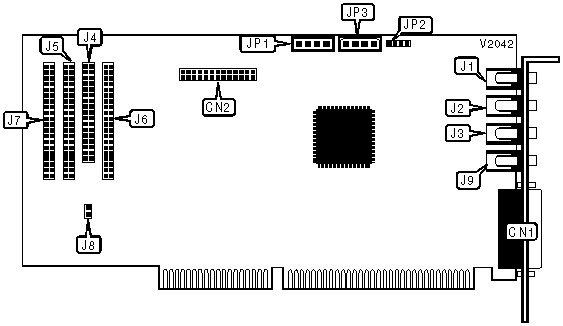

USER CONFIGURABLE SETTINGS

Function

Label

Position

IDE interface enabled

J8

Closed

IDE interface disabled

J8

Open
