MEDIA VISION TECHNOLOGY, INC.

PRO AUDIO SPECTRUM 16 BASIC (650-0053-52)

Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

Game/MIDI port, audio in, microphone in, stereo line in, stereo line out

Data Bus

16-bit ISA

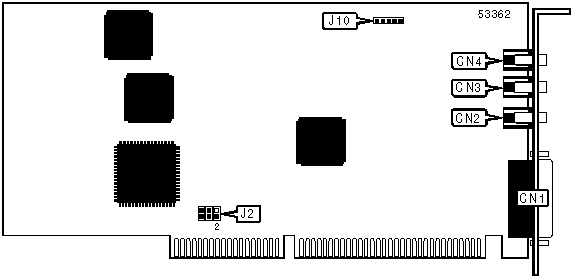

CONNECTIONS

Function

Label

Function

Label

Game/MIDI port

CN1

Stereo line in

CN4

Microphone in

CN2

Audio in - CD-ROM

J10

Stereo line out

CN3



BOARD ID SELECTION

Setting

J2/pins 1 & 2

J2/pins 3 & 4

J2/pins 5 & 6

»

0

Open

Open

Open



1

Closed

Open

Open



2

Open

Closed

Open



3

Closed

Closed

Open



4

Open

Open

Closed

Note: When ID 4 is selected, the base I/O address is forced to 388h. For all other ID’s the software scans for available settings. Refer to the manufacturer’s documentation for possible settings.
