MEDIA VISION TECHNOLOGY, INC.

PRO SONIC 16 PANASONIC (650-0066-04)

Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

Game/MIDI port, microphone in, speaker out, line in, audio in, IDE connector

Data Bus

16-bit ISA

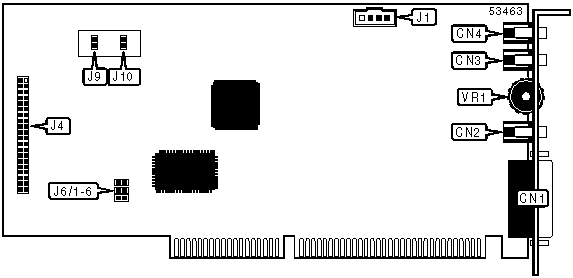

CONNECTIONS

Function

Label

Function

Label

Game/MIDI port

CN1

Audio in - CD-ROM

J1

Speaker out

CN2

CD-ROM Interface (Panasonic)

J4

Microphone in

CN3

Volume control

VR1

Line in

CN4



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

MPU 401 - enabled

J9

Open



MPU 401 - disabled

J9

Closed

»

Joystick - enable

J10

Open



Joystick - disable

J10

Closed

I/O ADDRESS SELECTION

Setting

J6/1 & 2

J6/3 & 4

J6/5 & 6



300

Closed

Closed

Closed



310

Open

Closed

Closed



320

Closed

Open

Closed



330

Open

Open

Closed

»

340

Closed

Closed

Open
