MAXPEED

SS-8PLUS

Card Type

Multi-I/O card

Chip Set

Unidentified

Maximum Onboard Memory

32K SRAM

I/O Options

serial ports (8)

Data Bus

16-bit ISA

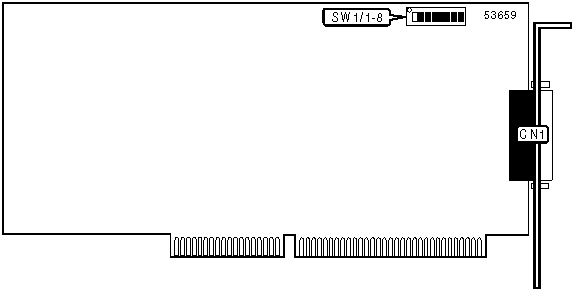

CONNECTIONS

Function

Label

Serial ports via DB-25 connector

CN1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Standard mode

SW1/8

Off



Enhanced mode

SW1/8

On

BOARD ADDRESS SELECTION

Setting

SW1/5

SW1/6

SW1/7

»

0

Off

Off

Off



1

On

Off

Off



2

Off

On

Off



3

On

On

Off



4

Off

Off

On



5

On

Off

On



6

Off

On

On



7

On

On

On

BIOS ADDRESS SELECTION

Address

SW1/1

SW1/2

SW1/3

SW1/4



C0000h

Off

Off

Off

Off



C2000h

On

Off

Off

Off



C4000h

Off

On

Off

Off



C6000h

On

On

Off

Off



C8000h

Off

Off

On

Off



CA000h

On

Off

On

Off



CC000h

Off

On

On

Off



CE000h

On

On

On

Off

»

D0000h

Off

Off

Off

On



D2000h

On

Off

Off

On



D4000h

Off

On

Off

On



D6000h

On

On

Off

On



D8000h

Off

Off

On

On



DA000h

On

Off

On

On



DC000h

Off

On

On

On



DE000h

On

On

On

On

MISCELLANEOUS TECHNICAL NOTES

Standard DB-25 or RJ-45 serial ports are provided on included adapter cables.
