ROLAND CORPORATION

RAP-10

Card Type

Sound Card

Chipset/Controller

Roland

I/O Options

Game/MIDI port, line in (2), speaker jack

Maximum DRAM

N/A

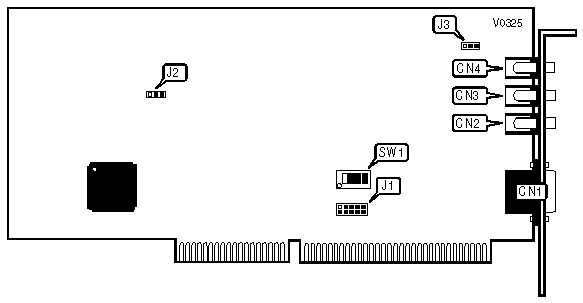

CONNECTIONS

Purpose

Location

Purpose

Location

Game/MIDI port

CN1

Line in 2

CN3

Speaker

CN2

Line in 1

CN4

I/O ADDRESS CONFIGURATION

Address

SW1/2

SW1/3

SW1/4

»

330h

Off

Off

Off



220h

On

Off

On



230h

On

Off

Off



240h

On

On

On



250h

On

On

Off



320h

Off

Off

On



340h

Off

On

On



350h

Off

On

Off

INTERRUPT SELECT

IRQ

J1

»

IRQ9

Pins 5 & 6 closed



IRQ5

Pins 1 & 2 closed



IRQ7

Pins 3 & 4 closed



IRQ10

Pins 7 & 8 closed



IRQ11

Pins 9 & 10 closed

GAME PORT CONFIGURATION

Port

SW1/1

»

Enabled

On



Disabled

Off

PRIMARY LINE IN CONFIGURATION

Setting

J3

»

Stereo

Pins 2 & 3 closed



Mono

Pins 1 & 2 closed

FACTORY CONFIGURED SETTINGS

Jumper

Setting

J2

Pins 2 & 3 closed
