PROCOM TECHNOLOGY, INC.

PICD650M

Card Type

CD-ROM adapter card

Chip Set

None

Maximum Onboard Memory

None

I/O Options

CD-ROM connector (2)

Data Bus

8-bit ISA

Floppy drives supported

None

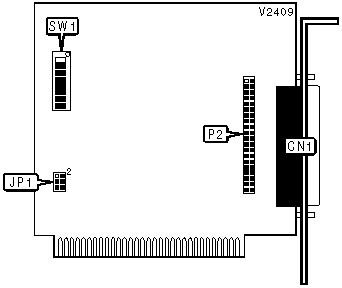

CONNECTIONS

Function

Label

Function

Label

37-pin external CD-ROM connector

CN1

40-pin internal CD-ROM connector

P2

INTERRUPT SELECTION

IRQ

JP1



2

Pins 1 & 2 closed

»

3

Pins 3 & 4 closed



5

Pins 5 & 6 closed

BASE I/O ADDRESS SELECTION

Setting

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

SW1/7

SW1/8



000h

On

On

On

On

On

On

On

On



004h

Off

On

On

On

On

On

On

On



008h

On

Off

On

On

On

On

On

On



00Ch

Off

Off

On

On

On

On

On

On



010h

On

On

Off

On

On

On

On

On

»

300h

On

On

On

On

On

On

Off

Off



3ECh

Off

Off

On

Off

Off

Off

Off

Off



3F0h

On

On

Off

Off

Off

Off

Off

Off



3F4h

Off

On

Off

Off

Off

Off

Off

Off



3F8h

On

Off

Off

Off

Off

Off

Off

Off



3FCh

Off

Off

Off

Off

Off

Off

Off

Off

Note:A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/8 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: SW1/8=512, SW1/7=256, SW1/6=128, SW1/5=64, SW1/4=32, SW1/3=16, SW1/2=8, SW1/1=4. Turn off the switches and add the values of the switches to obtain the correct memory address. (Off=0, On=1)

MISCELLANEOUS TECHNICAL NOTE

Note: The PCD650M works in conjunction with the PICD650M & PXCD650M CD-ROM drives.
