REVEAL COMPUTER PRODUCTS

SC500 WAVE32 (REV. 2)

Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

None

I/O Options

Line in, microphone in, speaker out, game/MIDI port, audio in - CD-ROM, CD-ROM interfaces (4), MPC connector, auxiliary in

Data Bus

16-bit ISA

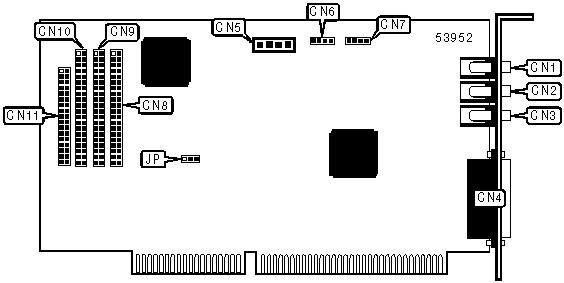

CONNECTIONS

Function

Label

Function

Label

Speaker out

CN1

Auxiliary in connector

CN7

Line in

CN2

CD-ROM interface (IDE)

CN8

Microphone in

CN3

CD-ROM interface (Mitsumi)

CN9

Game/MIDI port

CN4

CD-ROM interface (Sony)

CN10

Audio in - CD-ROM

CN5

CD-ROM interface (Panasonic)

CN11

MPC connector

CN6



USER CONFIGURABLE SETTINGS

Function

Label

Position

IDE CD-ROM interface disabled

JP

Pins 1 & 2 closed

IDE CD-ROM interface enabled

JP

Pins 2 & 3 closed
