PATTON ELECTRONICS COMPANY

2021

Card Type

Interface Converter

Chip Set

Unidentified

I/O Options

25-pin serial port, X.21 interface via 15-pin connector

Wiring Type

Unshielded twisted pair

Maximum Data Rate

384Kbps

Data Bus

External

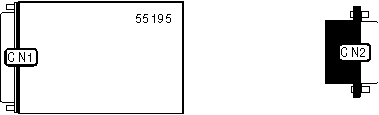

CONNECTIONS

Function

Label

Function

Label

25-pin serial port

CN1

15-pin connector

CN2
