SYSGEN, INC.

5600

Card Type

Tape drive controller

Chipset/Controller

Unidentified

I/O Options

Tape drive connector (internal/external)

Maximum DRAM

N/A

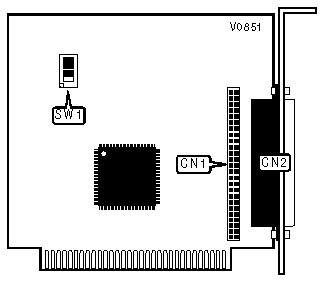

CONNECTIONS

Purpose

Location

Purpose

Location

Tape drive connector - internal

CN1

Tape drive connector - external

CN2

FACTORY CONFIGURED SETTINGS

Switch

Setting

SW1/1

Off

SW1/2

Off

SW1/3

Off

SW1/4

Off
