Card Type	Sound card
Chip Set	SRS
Maximum Onboard Memory	Unidentified
I/O Options	Game/MIDI port, microphone in, line in, line out, audio in – CD-ROM (2), daughterboard connector, S/PDIF connector,
Data Bus	16-bit ISA
Card Size	Half-length, full-height card

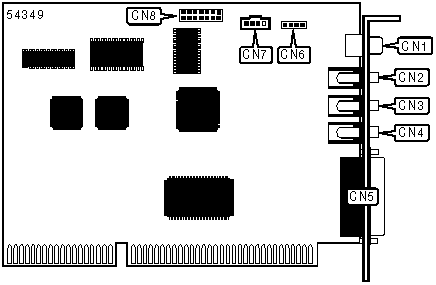

CONNECTIONS
Function	Label	Function	Label
S/PDIF out	CN1	Game/MIDI port	CN5
Microphone in	CN2	Audio in - CD-ROM (MPC-2)	CN6
Line in	CN3	Audio in - CD-ROM (Sony)	CN7
Line out	CN4	Daughterboard connector	CN8
