UNIDENTIFIED

SERIAL/PARALLEL CARD

Card Type

Multi I/O card

Chipset/Controller

Unidentified

I/O Options

Parallel ports (2), serial ports (2)

Maximum DRAM

N/A

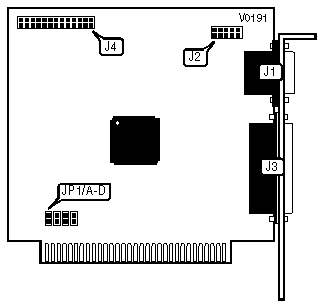

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 1

J1

Parallel port 1

J3

Serial port 2

J2

Parallel port 2

J4

SERIAL PORT CONFIGURATION

Port 1 (J1)

Port 2 (J2)

JP1/A

JP1/C

»

COM1

COM2

Open

Open



COM1

Disabled

Open

Closed



Disabled

COM2

Closed

Open

PARALLEL PORT CONFIGURATION

LPT

JP1/B

JP1/D

2

Open

Closed

3

Closed

Open

Note: LPT addresses will be 1 & 2 if your system does not already have a printer port.
