MULTI-TECH SYSTEMS, INC.

SPFC-A

Card Type

Multi-I/O card

Chipset/Controller

N/A

I/O Options

Parallel port, serial ports (2), floppy-drive port

Maximum DRAM

N/A

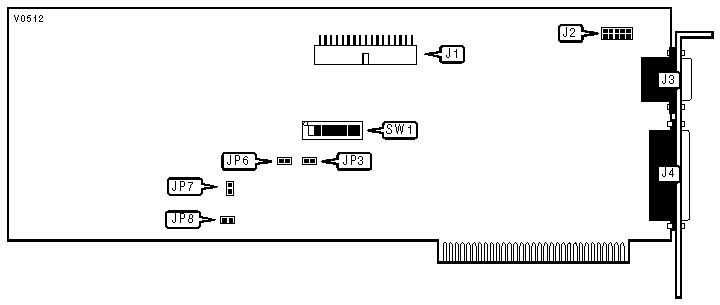

CONNECTIONS

Purpose

Location

Purpose

Location

Floppy-drive port - internall

J1

Serial port 1 - external

J3

Serial port 2 - internal

J2

Parallel port

J4

SERIAL PORT 1 CONFIGURATION

Port 1

SW1/1

SW1/3

»

COM1/3F8h

On

Off



COM3/3E8h

Off

On



Disabled

Off

Off

SERIAL PORT 2 CONFIGURATION

Port 2

SW1/2

SW1/4

»

Disabled

Off

Off



COM2/2F8h

On

Off



COM4/3E0h

Off

On

PARALLEL PORT CONFIGURATION

LPT/Address/IRQ

SW1/5

SW1/6

SW1/7

SW1/8

»

LPT1/378h/IRQ7

On

Off

On

Off



LPT1/378h/IRQ5

On

Off

Off

On



LPT2/278h/IRQ7

Off

On

On

Off



LPT2/278h/IRQ5

Off

On

Off

On



Disabled

Off

Off

Off

Off

HARD DRIVE CONTROLLER

Setting

JP3

»

Hard drive controller not present in system

Closed



Hard drive controller present in system

Open

FLOPPY DRIVE CONTROLLER

Setting

JP6

JP7

JP8

»

Enabled

Closed

Closed

Closed



Disabled

Open

Open

Open
