AMERICAN DIGICOM CORPORATION

DIGIS-P5

Processor

Pentium

Processor Speed

60/66MHz

Chip Set

Opti

Max. Onboard DRAM

128MB

Cache

64/128/256/512KB

BIOS

AMI

Dimensions

303mm x 220mm

I/O Options

32-bit VESA local bus slots (2)

NPU Options

None

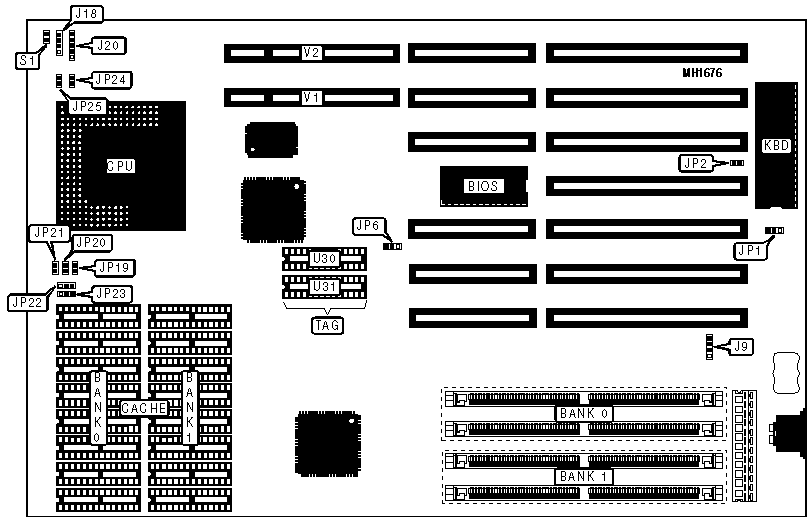

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J9

Turbo LED

JP25

Power LED & keylock

J20

Reset switch

S1

Speaker

JP18

32-bit VESA Local bus slot

V1

Turbo switch

JP24

32-bit VESA Local bus slot

V2

USER CONFIGURABLE SETTINGS

Function

Jumper/Switch

Position

»

CMOS memory normal operation

JP1

pins 2 & 3 closed



CMOS memory clear

JP1

pins 1 & 2 closed

»

Monitor type select color

JP2

closed



Monitor type select monochrome

JP2

open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

2MB

(2) 256K x 36

NONE

4MB

(2) 512K x 36

NONE

4MB

(2) 256K x 36

(2) 256K x 36

6MB

(2) 256K x 36

(2) 512K x 36

8MB

(2) 512K x 9

(2) 512K x 36

8MB

(2) 1M x 36

NONE

10MB

(2) 256K x 36

(2) 1M x 36

12MB

(2) 512K x 36

(2) 1M x 36

16MB

(2) 1M x 36

(2) 1M x 36

16MB

(2) 2M x 36

NONE

18MB

(2) 256K x 36

(2) 2M x 36

20MB

(2) 512K x 36

(2) 2M x 36

24MB

(2) 1M x 36

(2) 2M x 36

32MB

(2) 2M x 36

(2) 2M x 36

32MB

(2) 4M x 36

NONE

34MB

(2) 256K x 36

(2) 4M x 36

36MB

(2) 512K x 36

(2) 4M x 36

40MB

(2) 1M x 36

(2) 4M x 36

48MB

(2) 2M x 36

(2) 4M x 36

64MB

(2) 4M x 36

(2) 4M x 36

64MB

(2) 8M x 36

NONE

66MB

(2) 256K x 36

(2) 8M x 36

68MB

(2) 512K x 36

(2) 8M x 36

72MB

(2) 1M x 36

(2) 8M x 36

80MB

(2) 2M x 36

(2) 8M x 36

96MB

(2) 4M x 36

(2) 8M x 36

128MB

(2) 8M x 36

(2) 8M x 36

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG (U31)

TAG (U30)

64KB

(4) 8K x 8

NONE

(1) 8K x 8

NONE

128KB

(4) 8K x 8

(4) 8K x 8

(1) 8K x 8

NONE

256KB

(4) 32K x 8

NONE

(1) 8K x 8

NONE

512KB

(4) 32K x 8

(4) 32K x 8

(1) 8K x 8

8K x 8 or 32K x 8

CACHE JUMPER CONFIGURATION

Size

JP6

JP19

JP20

JP21

JP22

JP23

64KB

pins 1 & 2

Open

Open

Open

pins 1 & 2

pins 1 & 2

128KB

pins 2 & 3

Closed

Open

Open

pins 2 & 3

pins 2 & 3

256KB

pins 1 & 2

Closed

Closed

Open

pins 1 & 2

pins 1 & 2

512KB

pins 2 & 3

Closed

Closed

Closed

pins 2 & 3

pins 2 & 3
