ADVANCED INTEGRATION RESEARCH, INC.
54CMI REV. 1.0
|
 Processor  |
 Pentium Overdrive/Pentium  |
|
 Processor Speed  |
 75/90/100MHz  |
|
 Chip Set  |
 OPTI  |
|
 Max. Onboard DRAM  |
 128MB  |
|
 Cache  |
 256/512/1024KB  |
|
 BIOS  |
 AMI  |
|
 Dimensions  |
 330mm x 218mm  |
|
 I/O Options  |
 32-bit PCI bus slots (3), 32-bit VESA local bus slots (2), floppy drive interface (2), IDE interface, parallel port, serial ports (2), green PC connector  |
|
 NPU Options  |
 None  |
|

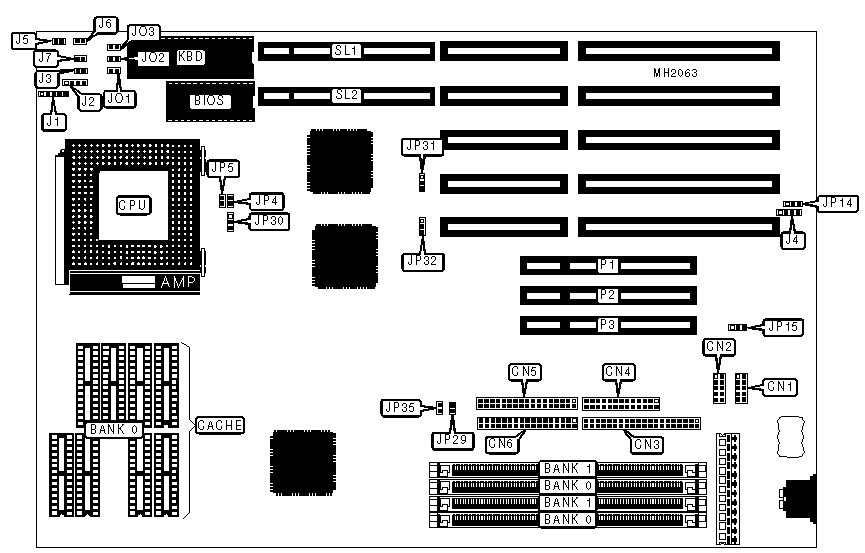

 CONNECTIONS  | |||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 Serial port 1  |
 CN1  |
 Reset switch  |
 J3  |
|
 Serial port 2  |
 CN2  |
 External battery  |
 J4  |
|
 IDE interface  |
 CN3  |
 Turbo switch  |
 J5  |
|
 Parallel port  |
 CN4  |
 Turbo LED  |
 J6  |
|
 Floppy drive interface 2  |
 CN5  |
 IDE interface LED  |
 J7  |
|
 Floppy drive interface 1  |
 CN6  |
 Green PC feature connector  |
 JP15  |
|
 Power LED & keylock  |
 J1  |
 32-bit PCI bus slots  |
 P1 - P3  |
|
 Speaker  |
 J2  |
 32-bit VESA Local bus slots  |
 SL1 & SL2  |
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Jumper  |
 Position  | |
|
 »  |
 Turbo mode enabled/flash BIOS programming disabled  |
 J5  |
 Closed  |
|
 Turbo mode disabled/flash BIOS programming enabled  |
 J5  |
 Open  | |
|
 »  |
 CMOS memory normal operation  |
 JP14  |
 Pins 2 & 3 closed  |
|
 CMOS memory clear  |
 JP14  |
 Pins 1 & 2 closed  | |
|
 »  |
 Parallel port IRQ select IRQ7  |
 JP32  |
 Pins 1 & 2 closed  |
|
 Parallel port IRQ select IRQ5  |
 JP32  |
 Pins 2 & 3 closed  | |
|
 »  |
 On board PCI IDE enabled  |
 JP35  |
 Open  |
|
 On board PCI IDE disabled  |
 JP35  |
 Closed  | |
|
 DRAM CONFIGURATION  | ||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 2MB  |
 (2) 256K x 36  |
 NONE  |
|
 4MB  |
 (2) 256K x 36  |
 (2) 256K x 36  |
|
 4MB  |
 (2) 512K x 36  |
 NONE  |
|
 6MB  |
 (2) 256K x 36  |
 (2) 512K x 36  |
|
 8MB  |
 (2) 512K x 36  |
 (2) 512K x 36  |
|
 8MB  |
 (2) 1M x 36  |
 NONE  |
|
 10MB  |
 (2) 256K x 36  |
 (2) 1M x 36  |
|
 12MB  |
 (2) 512K x 36  |
 (2) 1M x 36  |
|
 16MB  |
 (2) 1M x 36  |
 (2) 1M x 36  |
|
 16MB  |
 (2) 2M x 36  |
 NONE  |
|
 18MB  |
 (2) 256K x 36  |
 (2) 2M x 36  |
|
 20MB  |
 (2) 512K x 36  |
 (2) 2M x 36  |
|
 24MB  |
 (2) 1M x 36  |
 (2) 2M x 36  |
|
 32MB  |
 (2) 2M x 36  |
 (2) 2M x 36  |
|
 32MB  |
 (2) 4M x 36  |
 NONE  |
|
 34MB  |
 (2) 256K x 36  |
 (2) 4M x 36  |
|
 36MB  |
 (2) 512K x 36  |
 (2) 4M x 36  |
|
 40MB  |
 (2) 1M x 36  |
 (2) 4M x 36  |
|
 48MB  |
 (2) 2M x 36  |
 (2) 4M x 36  |
|
 64MB  |
 (2) 4M x 36  |
 (2) 4M x 36  |
|
 64MB  |
 (2) 8M x 36  |
 NONE  |
|
 66MB  |
 (2) 256K x 36  |
 (2) 8M x 36  |
|
 68MB  |
 (2) 512K x 36  |
 (2) 8M x 36  |
|
 72MB  |
 (2) 1M x 36  |
 (2) 8M x 36  |
|
 80MB  |
 (2) 2M x 36  |
 (2) 8M x 36  |
|
 96MB  |
 (2) 4M x 36  |
 (2) 8M x 36  |
|
 128MB  |
 (2) 8M x 36  |
 (2) 8M x 36  |
|
 CACHE CONFIGURATION  | |
|
 Size  |
 Bank 0  |
|
 256KB  |
 (8) 32K x 8  |
|
 512KB  |
 (8) 64K x 8  |
|
 1MB  |
 (8) 128K x 8  |
|
 CACHE JUMPER CONFIGURATION  | ||
|
 Size  |
 JP4  |
 JP5  |
|
 256KB  |
 Open  |
 Open  |
|
 512KB  |
 Open  |
 Closed  |
|
 1MB  |
 Closed  |
 Closed  |
|
 CPU SPEED CONFIGURATION  | |||
|
 Speed  |
 JO1  |
 JO2  |
 JO3  |
|
 75MHz  |
 Open  |
 Open  |
 Closed  |
|
 90MHz  |
 Open  |
 Closed  |
 Open  |
|
 100MHz  |
 Closed  |
 Closed  |
 Open  |
|
 FOUR FLOPPY DRIVE CONFIGURATION  | ||||
|
 All drives enabled  |
 ECP mode enabled  |
 JP29  |
 JP30  |
 JP31  |
|
 Yes  |
 No  |
 Open  |
 Open  |
 Open  |
|
 No  |
 Yes, use DMA 3  |
 Closed  |
 1 & 2  |
 1 & 2  |
|
 No  |
 Yes, use DMA 1  |
 Closed  |
 2 & 3  |
 2 & 3  |
|
 Note: Pins designated should be in the closed position.  | ||||
|
 GREEN PC CONFIGURATION  | |
|
 Description  |
 JP15  |
|
 Can be used to control video card VSYNC. Connect to pin 12 on VGA feature connector.  |
 Pin 1  |
|
 Can be used to control video card HSYNC. Connect to pin 11 on VGA feature connector.  |
 Pin 2  |
|
 Enables or disables video signals. Connect this to pin 18 on VGA feature connector.  |
 Pin 3  |
