AMERICAN PREDATOR CORPORATION

PREDATOR I PLUS

Processor

80386DX/AMD386DX/80486SX/80487SX/CX486DLC/80486DX/AMD486DX/

80486DX2/Pentium Overdrive

Processor Speed

20/25/33/40/50/50(internal)/66(internal)MHz

Chip Set

Symphony

Max. Onboard DRAM

64MB

Cache

64/128/256KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

32-bit VESA local bus slots (2), 32-bit proprietary slot, floppy drive interface, IDE interface, parallel port, serial ports (2)

NPU Options

80387

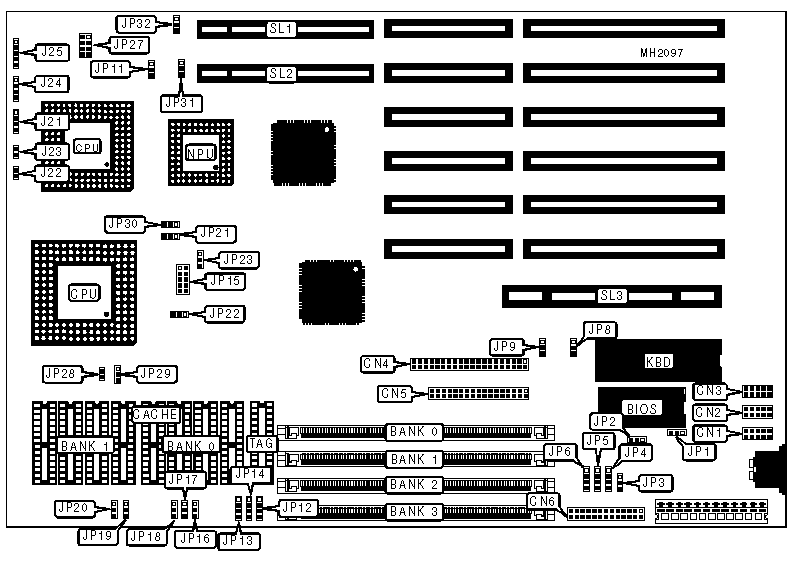

CONNECTIONS

Purpose

Location

Purpose

Location

Mouse connector

CN1

Reset switch

J22

Serial port 2

CN2

IDE interface LED

J23

Serial port 1

CN3

Speaker

J24

IDE interface

CN4

Power LED & keylock

J25

Floppy drive interface

CN5

32-bit VESA Local bus slots

SL1, SL2

Parallel port

CN6

32-bit proprietary slot

SL3

Turbo switch & LED

J21



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

RTC normal operation

JP1

pins 1 & 2 closed



RTC reset

JP1

pins 2 & 3 closed

»

Flash ROM BIOS normal operation

JP2

pins 1 & 2 closed



Flash ROM BIOS emergency backup operation

JP2

pins 2 & 3 closed

»

Standard I/O enabled

JP3

pins 1 & 2 closed



Standard I/O disabled

JP3

pins 2 & 3 closed

»

Monitor type select color

JP8

pins 1 & 2 closed



Monitor type select monochrome

JP8

pins 2 & 3 closed

»

Mouse set IRQ 12

JP9

pins 1 & 2 closed



Mouse disabled

JP9

pins 2 & 3 closed

SERIAL PORT (COM1) IRQ CONFIGURATION

IRQ

JP5

IRQ4

pins 1 & 2 closed

IRQ5

pins 2 & 3 closed

Disabled

pins 3 & 4 closed

SERIAL PORT (COM2) IRQ CONFIGURATION

IRQ

JP6

IRQ3

pins 1 & 2 closed

IRQ9

pins 2 & 3 closed

Disabled

pins 3 & 4 closed

PARALLEL PORT IRQ CONFIGURATION

Address

JP4

IRQ7

pins 1 & 2 closed

IRQ5

pins 2 & 3 closed

Disabled

pins 3 & 4 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(1) 256K x 36

NONE

NONE

NONE

2MB

(1) 256K x 36

(1) 256K x 36

NONE

NONE

2MB

(1) 512K x 36

NONE

NONE

NONE

3MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

NONE

3MB

(1) 512K x 36

(1) 256K x 36

NONE

NONE

4MB

(1) 512K x 36

(1) 512K x 36

NONE

NONE

4MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

4MB

(1) 1M x 36

NONE

NONE

NONE

5MB

(1) 512K x 36

(1) 512K x 36

(1) 256K x 36

NONE

5MB

(1) 1M x 36

(1) 256K x 36

NONE

NONE

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

6MB

(1) 1M x 36

(1) 512K x 36

NONE

NONE

6MB

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

NONE

8MB

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

8MB

(1) 2M x 36

NONE

NONE

NONE

8MB

(1) 1M x 36

(1) 1M x 36

NONE

NONE

9MB

(1) 2M x 36

(1) 256K x 36

NONE

NONE

9MB

(1) 1M x 36

(1) 256K x 36

(1) 512K x 36

(1) 512K x 36

10MB

(1) 1M x 36

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

10MB

(1) 2M x 36

(1) 512K x 36

NONE

NONE

11MB

(1) 2M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

12MB

(1) 2M x 36

(1) 1M x 36

NONE

NONE

13MB

(1) 2M x 36

(1) 1M x 36

(1) 256K x 36

NONE

14MB

(1) 2M x 36

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

14MB

(1) 2M x 36

(1) 1M x 36

(1) 512K x 36

NONE

16MB

(1) 2M x 36

(1) 2M x 36

NONE

NONE

16MB

(1) 4M x 36

NONE

NONE

NONE

16MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

17MB

(1) 4M x 36

(1) 256K x 36

NONE

NONE

17MB

(1) 256K x 36

(1) 2M x 36

(1) 2M x 36

NONE

17MB

(1) 256K x 36

NONE

(1) 2M x 36

(1) 2M x 36

18MB

(1) 512K x 36

NONE

(1) 2M x 36

(1) 2M x 36

18MB

(1) 2M x 36

(1) 2M x 36

(1) 512K x 36

NONE

18MB

(1) 4M x 36

(1) 512K x 36

NONE

NONE

19MB

(1) 4M x 36

(1) 512K x 36

(1) 256K x 36

NONE

21MB

(1) 4M x 36

(1) 1M x 36

(1) 256K x 36

NONE

21MB

(1) 4M x 36

(1) 256K x 36

(1) 512K x 36

(1) 512K x 36

22MB

(1) 4M x 36

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

24MB

(1) 4M x 36

(1) 2M x 36

NONE

NONE

24MB

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

NONE

25MB

(1) 4M x 36

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

28MB

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

32MB

(1) 8M x 36

NONE

NONE

NONE

32MB

(1) 4M x 36

(1) 4M x 36

NONE

NONE

32MB

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

33MB

(1) 4M x 36

(1) 4M x 36

(1) 256K x 36

NONE

33MB

(1) 8M x 36

(1) 256K x 36

NONE

NONE

34MB

(1) 8M x 36

(1) 256K x 36

(1) 256K x 36

NONE

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

34MB

(1) 4M x 36

(1) 4M x 36

(1) 256K x 36

(1) 256K x 36

35MB

(1) 8M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

36MB

(1) 8M x 36

(1) 1M x 36

NONE

NONE

36MB

(1) 8M x 36

(1) 512K x 36

(1) 512K x 36

NONE

37MB

(1) 8M x 36

(1) 1M x 36

(1) 256K x 36

NONE

38MB

(1) 8M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

40MB

(1) 8M x 36

(1) 2M x 36

NONE

NONE

40MB

(1) 8M x 36

(1) 1M x 36

(1) 1M x 36

NONE

41MB

(1) 8M x 36

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

41MB

(1) 8M x 36

(1) 2M x 36

(1) 256K x 36

NONE

42MB

(1) 8M x 36

(1) 2M x 36

(1) 512K x 36

NONE

44MB

(1) 8M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

48MB

(1) 8M x 36

(1) 2M x 36

(1) 2M x 36

NONE

48MB

(1) 8M x 36

(1) 4M x 36

NONE

NONE

49MB

(1) 8M x 36

(1) 4M x 36

(1) 256K x 36

NONE

50MB

(1) 8M x 36

(1) 4M x 36

(1) 512K x 36

NONE

52MB

(1) 8M x 36

(1) 4M x 36

(1) 1M x 36

NONE

56MB

(1) 8M x 36

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

64MB

(1) 8M x 36

(1) 8M x 36

NONE

NONE

Note:SIMMS installed in banks 2 and 3 must be of the same size. At least one SIMM must be installed at a time. The order they should be filled is from the inside of the board outward.

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

64KB

(4) 8K x 8

(4) 8K x 8

(1) 8K x 8

128KB

(4) 32K x 8

NONE

(1) 32K x 8

256KB

(4) 32K x 8

(4) 32K x 8

(1) 32K x 8

CACHE JUMPER CONFIGURATION

Size

JP12

JP13

JP14

JP16

64KB

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

128KB

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

256KB

pins 3 & 4 closed

pins 3 & 4 closed

pins 3 & 4 closed

pins 1 & 2 closed

CACHE JUMPER CONFIGURATION (CON’T)

Size

JP17

JP18

JP19

JP20

64KB

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

128KB

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

256KB

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

CPU TYPE/CACHE SIZE CONFIGURATION

CPU Type

Cache Size

JP28

JP29

Any 486 xX

64KB

pins 1 & 2 closed

pins 1 & 2 closed

Any 486 xX

128KB

pins 1 & 2 closed

pins 1 & 2 closed

Any 486 xX

256KB

pins 1 & 2 closed

pins 1 & 2 closed

386 or 486DLC

64KB

pins 2 & 3 closed

pins 2 & 3 closed

386 or 486DLC

128KB

pins 1 & 2 closed

pins 1 & 2 closed

386 or 486DLC

256KB

pins 2 & 3 closed

pins 2 & 3 closed

CPU TYPE CONFIGURATION

CPU Type

JP22

JP23

JP27

JP30

80386DX

pins 1 & 2 closed

pins 1 & 2 closed

pins 7 & 8 closed

pins 1 & 2 closed

80486SX

pins 1 & 2 closed

pins 1 & 2 closed

pins 5 & 6 closed

pins 1 & 2 closed

80486DLC

pins 2 & 3 closed

pins 2 & 3 closed

pins 7 & 8 closed

pins 2 & 3 closed

80487SX

pins 1 & 2 closed

pins 1 & 2 closed

pins 3 & 4 closed

pins 1 & 2 closed

80486DX

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

80486DX2

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

Pentium Overdrive

pins 1 & 2 closed

pins 1 & 2 closed

pins 3 & 4 closed

pins 1 & 2 closed

CPU SPEED CONFIGURATION

Speed

JP15

JP21

JP31

JP32

20MHz

pins 1 & 2 closed

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed

25MHz

pins 3 & 4 closed

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed

33MHz

pins 5 & 6 closed

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed

40MHz

pins 7 & 8 closed

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed

50MHz

pins 9 & 10 closed

pins 2 & 3 closed

pins 1 & 2 closed*

pins 2 & 3 closed*

50iMHz

pins 3 & 4 closed

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed

66iMHz

pins 5 & 6 closed

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed

Note:Only if using local bus adaptors, otherwise same settings as row above. (reversed)

VESA WAIT STATE CONFIGURATION

Wait states

JP11

0 wait states

pins 1 & 2 closed

1 wait state

pins 2 & 3 closed
