ATEN RESEARCH, INC.

AM-586VIPL / PCI58PL

Processor

Pentium

Processor Speed

60/66MHz

Chip Set

OPTI

Max. Onboard DRAM

128MB

Cache

256/512KB

BIOS

Unidentified

Dimensions

330mm x 218mm

I/O Options

32-bit VESA local bus slots (2), 32-bit PCI slots (4)

NPU Options

None

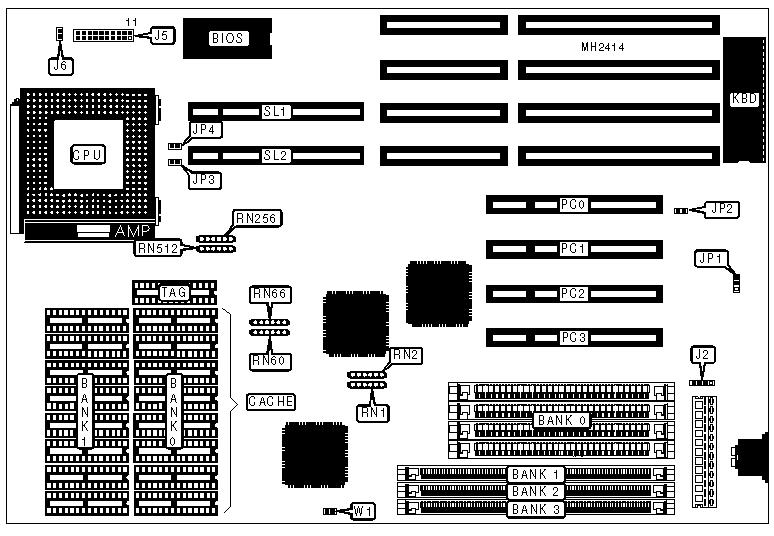

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J2

Hard drive LED

J5 (pins 10 & 20)

Hard drive LED interface

J6

Power LED & keylock

J5 (pins 11-15)

Speaker

J5 (pins 1-4)

32-bit PCI slots

PC0 - PC3

Turbo LED

J5 (pins 8 & 18)

32-bit VESA local bus slots

SL1 & SL2

Reset switch

J5 (pins 9 & 19)



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

CMOS memory normal operation (on board battery)

JP1

pins 2 & 3 closed



CMOS memory normal operation (external battery)

JP1

all open



CMOS memory clear

JP1

pins 1 & 2 closed

»

Monitor type select monochrome

JP2

Open



Monitor type select color

JP2

Closed

»

VESA wait state select 0 wait states

JP4

Open



VESA wait state select 1 wait state

JP4

Closed

»

VESA edge select 1 wait state

W1

Closed



VESA edge select 0 wait state

W1

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

4MB

(4) 1M x 9

NONE

NONE

NONE

4MB

NONE

(1) 1M x 36

NONE

NONE

8MB

(4) 1M x 9

NONE

(1) 1M x 36

NONE

8MB

NONE

(1) 1M x 36

(1) 1M x 36

NONE

8MB

NONE

(1) 2M x 36

NONE

NONE

12MB

(4) 1M x 9

NONE

(1) 2M x 36

NONE

12MB

NONE

(1) 1M x 36

(1) 2M x 36

NONE

16MB

(4) 1M x 9

NONE

(1) 1M x 36

(1) 2M x 36

16MB

(4) 4M x 9

NONE

NONE

NONE

16MB

NONE

(1) 1M x 36

(1) 1M x 36

(1) 2M x 36

16MB

NONE

(1) 2M x 36

(1) 2M x 36

NONE

16MB

NONE

(1) 4M x 36

NONE

NONE

20MB

(4) 1M x 9

NONE

(1) 2M x 36

(1) 2M x 36

20MB

(4) 1M x 9

NONE

(1) 4M x 36

NONE

20MB

NONE

(1) 1M x 36

(1) 2M x 36

(1) 2M x 36

20MB

NONE

(1) 1M x 36

(1) 4M x 36

NONE

24MB

NONE

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

24MB

NONE

(1) 2M x 36

(1) 4M x 36

NONE

32MB

(4) 4M x 9

NONE

(1) 4M x 36

NONE

32MB

NONE

(1) 4M x 36

(1) 4M x 36

NONE

32MB

NONE

(1) 8M x 36

NONE

NONE

36MB

(4) 1M x 9

NONE

(1) 8M x 36

NONE

36MB

NONE

(1) 1M x 36

(1) 8M x 36

NONE

40MB

(4) 1M x 9

NONE

(1) 1M x 36

(1) 8M x 36

40MB

NONE

(1) 1M x 36

(1) 1M x 36

(1) 8M x 36

40MB

NONE

(1) 2M x 36

(1) 8M x 36

NONE

44MB

(4) 1M x 9

NONE

(1) 2M x 36

(1) 8M x 36

44MB

NONE

(1) 1M x 36

(1) 2M x 36

(1) 8M x 36

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

48MB

(4) 4M x 9

NONE

(1) 8M x 36

NONE

48MB

NONE

(1) 2M x 36

(1) 2M x 36

(1) 8M x 36

48MB

NONE

(1) 4M x 36

(1) 8M x 36

NONE

52MB

(4) 1M x 9

NONE

(1) 4M x 36

(1) 8M x 36

52MB

NONE

(1) 1M x 36

(1) 4M x 36

(1) 8M x 36

56MB

NONE

(1) 2M x 36

(1) 4M x 36

(1) 8M x 36

64MB

(4) 4M x 9

NONE

(1) 4M x 36

(1) 8M x 36

64MB

(4) 16M x 9

NONE

NONE

NONE

64MB

NONE

(1) 4M x 36

(1) 4M x 36

(1) 8M x 36

64MB

NONE

(1) 8M x 36

(1) 8M x 36

NONE

64MB

NONE

(1) 16M x 36

NONE

NONE

68MB

(4) 1M x 9

NONE

(1) 8M x 36

(1) 8M x 36

68MB

NONE

(1) 1M x 36

(1) 8M x 36

(1) 8M x 36

72MB

NONE

(1) 2M x 36

(1) 8M x 36

(1) 8M x 36

80MB

(4) 4M x 9

NONE

(1) 8M x 36

(1) 8M x 36

80MB

NONE

(1) 4M x 36

(1) 8M x 36

(1) 8M x 36

96MB

(4) 16M x 9

NONE

(1) 8M x 36

NONE

96MB

NONE

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

96MB

NONE

(1) 16M x 36

(1) 8M x 36

NONE

128MB

(4) 16M x 9

NONE

(1) 8M x 36

(1) 8M x 36

128MB

NONE

(1) 16M x 36

(1) 8M x 36

(1) 8M x 36

DRAM RESISTOR ARRAY CONFIGURATION

SIMM Size

RN1

RN2

16M SIMM in Bank 0 or Bank 1

Not installed

Installed

Other

Installed

Not installed

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

256KB

(8) 32K x 8

NONE

(1) 32K x 8

512KB

(8) 32K x 8

(8) 32K x 8

(1) 32K x 8

CACHE RESISTOR ARRAY CONFIGURATION

Size

RA256

RA512

256KB

Installed

Not installed

512KB

Not installed

Installed

CPU SPEED RESISTOR ARRAY CONFIGURATION

Speed

RN60

RN66

60

Installed

Not installed

66

Not installed

Installed

VESA BUS SPEED CONFIGURATION

Speed

JP3

Synchronous

Open

Asynchronous

Closed
