AMPTRON INTERNATIONAL, INC.

PM-9100 (VER. 1.0)

Processor

Pentium

Processor Speed

90/100MHz

Chip Set

Intel

Max. Onboard DRAM

512MB

Cache

256/512KB

BIOS

Award

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (4), IRQ feature connectors (2)

NPU Options

None

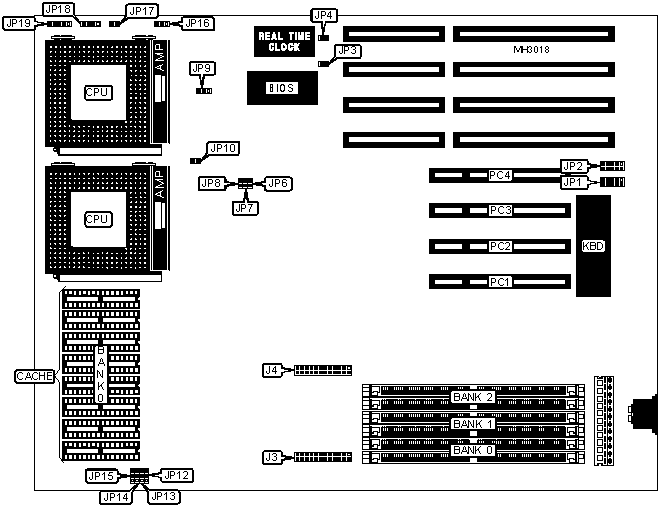

CONNECTIONS

Purpose

Location

Purpose

Location

3.3v power connector

J3

Reset switch

JP17

3.3v power connector

J4

Speaker

JP18

IRQ feature connector

JP1

Power LED & keylock

JP19

IRQ feature connector

JP2

32-bit PCI slots

PC1 - PC4

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

CMOS memory normal operation

JP3

Open



CMOS memory clear

JP3

Closed

»

BIOS type select 5v EPROM

JP4

Open



BIOS type select 12v flash

JP4

Closed

»

Dual processors installed

JP9

pins 2 & 3 closed



Single processor installed

JP9

pins 1 & 2 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

2MB

(2) 256K x 36

NONE

NONE

4MB

(2) 512K x 36

NONE

NONE

4MB

(2) 256K x 36

(2) 256K x 36

NONE

6MB

(2) 512K x 36

(2) 256K x 36

NONE

6MB

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

6MB

(2) 256K x 36

(2) 512K x 36

NONE

8MB

(2) 512K x 36

(2) 256K x 36

(2) 256K x 36

8MB

(2) 512K x 36

(2) 512K x 36

NONE

8MB

(2) 1M x 36

NONE

NONE

10MB

(2) 1M x 36

(2) 256K x 36

NONE

10MB

(2) 256K x 36

(2) 512K x 36

(2) 512K x 36

10MB

(2) 256K x 36

(2) 1M x 36

NONE

12MB

(2) 512K x 36

(2) 512K x 36

(2) 512K x 36

12MB

(2) 512K x 36

(2) 1M x 36

NONE

12MB

(2) 1M x 36

(2) 256K x 36

(2) 256K x 36

12MB

(2) 1M x 36

(2) 512K x 36

NONE

16MB

(2) 2M x 36

NONE

NONE

16MB

(2) 1M x 36

(2) 512K x 36

(2) 512K x 36

16MB

(2) 1M x 36

(2) 1M x 36

NONE

18MB

(2) 2M x 36

(2) 256K x 36

NONE

18MB

(2) 256K x 36

(2) 1M x 36

(2) 1M x 36

18MB

(2) 256K x 36

(2) 2M x 36

NONE

20MB

(2) 512K x 36

(2) 1M x 36

(2) 1M x 36

20MB

(2) 512K x 36

(2) 2M x 36

NONE

20MB

(2) 2M x 36

(2) 256K x 36

(2) 256K x 36

20MB

(2) 2M x 36

(2) 512K x 36

NONE

24MB

(2) 2M x 36

(2) 512K x 36

(2) 512K x 36

24MB

(2) 2M x 36

(2) 1M x 36

NONE

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

24MB

(2) 1M x 36

(2) 2M x 36

NONE

32MB

(2) 4M x 36

NONE

NONE

32MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

32MB

(2) 2M x 36

(2) 2M x 36

NONE

34MB

(2) 4M x 36

(2) 256K x 36

NONE

34MB

(2) 256K x 36

(2) 2M x 36

(2) 2M x 36

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

34MB

(2) 256K x 36

(2) 4M x 36

NONE

36MB

(2) 512K x 36

(2) 2M x 36

(2) 2M x 36

36MB

(2) 512K x 36

(2) 4M x 36

NONE

36MB

(2) 4M x 36

(2) 256K x 36

(2) 256K x 36

36MB

(2) 4M x 36

(2) 512K x 36

NONE

40MB

(2) 4M x 36

(2) 512K x 36

(2) 512K x 36

40MB

(2) 4M x 36

(2) 1M x 36

NONE

40MB

(2) 1M x 36

(2) 2M x 36

(2) 2M x 36

40MB

(2) 1M x 36

(2) 4M x 36

NONE

48MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

NONE

48MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

48MB

(2) 2M x 36

(2) 4M x 36

NONE

64MB

(2) 8M x 36

NONE

NONE

64MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

64MB

(2) 4M x 36

(2) 4M x 36

NONE

66MB

(2) 8M x 36

(2) 256K x 36

NONE

66MB

(2) 256K x 36

(2) 4M x 36

(2) 4M x 36

66MB

(2) 256K x 36

(2) 8M x 36

NONE

68MB

(2) 512K x 36

(2) 4M x 36

(2) 4M x 36

68MB

(2) 512K x 36

(2) 8M x 36

NONE

68MB

(2) 8M x 36

(2) 256K x 36

(2) 256K x 36

68MB

(2) 8M x 36

(2) 512K x 36

NONE

72MB

(2) 8M x 36

(2) 512K x 36

(2) 512K x 36

72MB

(2) 8M x 36

(2) 1M x 36

NONE

72MB

(2) 1M x 36

(2) 4M x 36

(2) 4M x 36

72MB

(2) 1M x 36

(2) 8M x 36

NONE

80MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

NONE

80MB

(2) 2M x 36

(2) 4M x 36

(2) 4M x 36

80MB

(2) 2M x 36

(2) 8M x 36

NONE

96MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

NONE

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

96MB

(2) 4M x 36

(2) 8M x 36

NONE

128MB

(2) 16M x 36

NONE

NONE

128MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

NONE

130MB

(2) 16M x 36

(2) 256K x 36

NONE

130MB

(2) 256K x 36

(2) 8M x 36

(2) 8M x 36

130MB

(2) 256K x 36

(2) 16M x 36

NONE

132MB

(2) 512K x 36

(2) 8M x 36

(2) 8M x 36

132MB

(2) 512K x 36

(2) 16M x 36

NONE

132MB

(2) 16M x 36

(2) 256K x 36

(2) 256K x 36

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

132MB

(2) 16M x 36

(2) 512K x 36

NONE

136MB

(2) 16M x 36

(2) 512K x 36

(2) 512K x 36

136MB

(2) 16M x 36

(2) 1M x 36

NONE

136MB

(2) 1M x 36

(2) 8M x 36

(2) 8M x 36

136MB

(2) 1M x 36

(2) 16M x 36

NONE

144MB

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

NONE

144MB

(2) 2M x 36

(2) 8M x 36

(2) 8M x 36

144MB

(2) 2M x 36

(2) 16M x 36

NONE

160MB

(2) 16M x 36

(2) 2M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

NONE

160MB

(2) 4M x 36

(2) 8M x 36

(2) 8M x 36

160MB

(2) 4M x 36

(2) 16M x 36

NONE

192MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

NONE

192MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

192MB

(2) 8M x 36

(2) 16M x 36

NONE

256MB

(2) 32M x 36

NONE

NONE

256MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

NONE

258MB

(2) 32M x 36

(2) 256K x 36

NONE

258MB

(2) 256K x 36

(2) 16M x 36

(2) 16M x 36

258MB

(2) 256K x 36

(2) 32M x 36

NONE

260MB

(2) 512K x 36

(2) 16M x 36

(2) 16M x 36

260MB

(2) 512K x 36

(2) 32M x 36

NONE

260MB

(2) 32M x 36

(2) 256K x 36

(2) 256K x 36

260MB

(2) 32M x 36

(2) 512K x 36

NONE

264MB

(2) 32M x 36

(2) 512K x 36

(2) 512K x 36

264MB

(2) 32M x 36

(2) 1M x 36

NONE

264MB

(2) 1M x 36

(2) 16M x 36

(2) 16M x 36

264MB

(2) 1M x 36

(2) 32M x 36

NONE

272MB

(2) 32M x 36

(2) 1M x 36

(2) 1M x 36

272MB

(2) 32M x 36

(2) 2M x 36

NONE

272MB

(2) 2M x 36

(2) 16M x 36

(2) 16M x 36

272MB

(2) 2M x 36

(2) 32M x 36

NONE

288MB

(2) 32M x 36

(2) 2M x 36

(2) 2M x 36

288MB

(2) 32M x 36

(2) 4M x 36

NONE

288MB

(2) 4M x 36

(2) 16M x 36

(2) 16M x 36

288MB

(2) 4M x 36

(2) 32M x 36

NONE

320MB

(2) 32M x 36

(2) 4M x 36

(2) 4M x 36

320MB

(2) 32M x 36

(2) 8M x 36

NONE

320MB

(2) 8M x 36

(2) 16M x 36

(2) 16M x 36

320MB

(2) 8M x 36

(2) 32M x 36

NONE

384MB

(2) 32M x 36

(2) 8M x 36

(2) 8M x 36

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

384MB

(2) 32M x 36

(2) 16M x 36

NONE

384MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

384MB

(2) 16M x 36

(2) 32M x 36

NONE

512MB

(2) 32M x 36

(2) 16M x 36

(2) 16M x 36

512MB

(2) 32M x 36

(2) 32M x 36

NONE

CACHE CONFIGURATION

Size

Bank 0

256KB

(8) 32K x 8

512KB

(8) 64K x 8

CACHE JUMPER CONFIGURATION

Size

JP16

256KB

pins 1 & 2 closed

512KB

pins 2 & 3 closed

CACHE VOLTAGE CONFIGURATION

Voltage

JP12

JP13

JP14

JP15

3.3v

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

5v

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

CPU CLOCK SPEED CONFIGURATION

Speed

JP6

JP7

JP8

50MHz

Closed

Open

Open

60MHz

Open

Closed

Open

66MHz

Closed

Open

Closed

CPU INTERNAL CLOCK SPEED CONFIGURATION

Speed

JP10

1.5x

Open

2x

Closed

MISCELLANEOUS CONFIGURATION

Note: If one of the 3.3v power connectors are used, J3 must be connected with JP1 or J4 must be connected with JP2.
