AMERICAN MEGATRENDS, INC.

TITAN II PCI

Processor

Pentium

Processor Speed

75/90/100MHz

Chip Set

Unidentified

Video Chip Set

None

Maximum Onboard Memory

512MB

Maximum Video Memory

None

Cache

256/512KB

BIOS

AMI

Dimensions

351mm x 307mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), green VGA interface

NPU Options

None

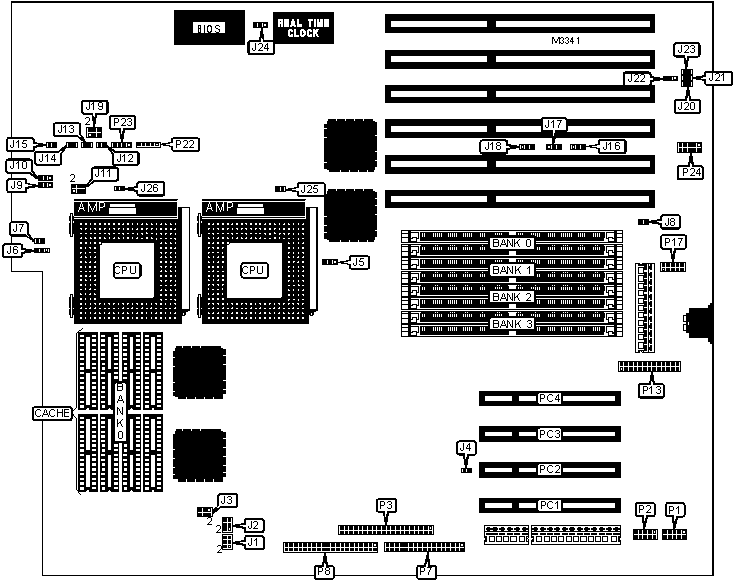

CONNECTIONS

Purpose

Location

Purpose

Location

Reset switch

J12

Serial port 2

P2

Turbo LED

J13

IDE interface 1

P3

IDE interface LED

J14

Floppy drive interface

P7

Diagnostic LED

J15

IDE interface 2

P8

Green PC connector

J20

Parallel port

P13

Password LED

J21

PS/2 mouse interface

P17

Green PC connector

J23

Power LED & keylock

P22

Chassis fan power

J25

Speaker

P23

Chassis fan power

J26

Green VGA interface

P24

Serial port 1

P1

32-bit PCI slots

PC1 - PC4

USER CONFIGURABLE SETTINGS

Function

Label

Position



Jumper information unavailable

J4

N/A

»

Factory configured - do not alter CPU type select

J5

Pins 2 & 3 closed



Single processor installed

J6

Pins 2 & 3 closed



Dual processors installed

J6

Pins 1 & 2 closed



Jumper information unavailable

J8

N/A



PLL normal operation

J10

Pins 2 & 3 closed



PLL test mode

J10

Pins 1 & 2 closed

»

Parallel port IRQ select IRQ7

J18

Pins 1 & 2 closed



Parallel port IRQ select IRQ5

J18

Pins 2 & 3 closed



Password LED select power LED through password LED

J22

Pins 1 & 2 closed



Password LED select separate LED through J21.

J22

Pins 2 & 3 closed

»

Flash BIOS voltage select 12v

J24

Pins 2 & 3 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

2MB

(2) 256K x 36

None

None

None

4MB

(2) 512K x 36

None

None

None

4MB

(2) 256K x 36

(2) 256K x 36

None

None

6MB

(2) 512K x 36

(2) 256K x 36

None

None

6MB

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

None

6MB

(2) 256K x 36

(2) 512K x 36

None

None

8MB

(2) 1M x 36

None

None

None

8MB

(2) 512K x 36

(2) 256K x 36

(2) 256K x 36

None

8MB

(2) 512K x 36

(2) 512K x 36

None

None

8MB

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

10MB

(2) 1M x 36

(2) 256K x 36

None

None

10MB

(2) 512K x 36

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

10MB

(2) 256K x 36

(2) 512K x 36

(2) 512K x 36

None

10MB

(2) 256K x 36

(2) 1M x 36

None

None

12MB

(2) 1M x 36

(2) 256K x 36

(2) 256K x 36

None

DRAM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

12MB

(2) 1M x 36

(2) 512K x 36

None

None

12MB

(2) 512K x 36

(2) 512K x 36

(2) 512K x 36

None

12MB

(2) 512K x 36

(2) 1M x 36

None

None

14MB

(2) 1M x 36

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

14MB

(2) 256K x 36

(2) 512K x 36

(2) 512K x 36

(2) 512K x 36

16MB

(2) 2M x 36

None

None

None

16MB

(2) 1M x 36

(2) 512K x 36

(2) 512K x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

None

None

16MB

(2) 512K x 36

(2) 512K x 36

(2) 512K x 36

(2) 512K x 36

18MB

(2) 2M x 36

(2) 256K x 36

None

None

18MB

(2) 256K x 36

(2) 1M x 36

(2) 1M x 36

None

18MB

(2) 256K x 36

(2) 2M x 36

None

None

20MB

(2) 2M x 36

(2) 256K x 36

(2) 256K x 36

None

20MB

(2) 2M x 36

(2) 512K x 36

None

None

20MB

(2) 1M x 36

(2) 512K x 36

(2) 512K x 36

(2) 512K x 36

20MB

(2) 512K x 36

(2) 1M x 36

(2) 1M x 36

None

20MB

(2) 512K x 36

(2) 2M x 36

None

None

22MB

(2) 2M x 36

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

24MB

(2) 2M x 36

(2) 512K x 36

(2) 512K x 36

None

24MB

(2) 2M x 36

(2) 1M x 36

None

None

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

None

24MB

(2) 1M x 36

(2) 2M x 36

None

None

26MB

(2) 256K x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

28MB

(2) 2M x 36

(2) 512K x 36

(2) 512K x 36

(2) 512K x 36

28MB

(2) 512K x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

None

None

32MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

None

None

32MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

34MB

(2) 4M x 36

(2) 256K x 36

None

None

34MB

(2) 256K x 36

(2) 2M x 36

(2) 2M x 36

None

34MB

(2) 256K x 36

(2) 4M x 36

None

None

36MB

(2) 4M x 36

(2) 256K x 36

(2) 256K x 36

None

36MB

(2) 4M x 36

(2) 512K x 36

None

None

36MB

(2) 512K x 36

(2) 2M x 36

(2) 2M x 36

None

36MB

(2) 512K x 36

(2) 4M x 36

None

None

38MB

(2) 4M x 36

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

40MB

(2) 4M x 36

(2) 512K x 36

(2) 512K x 36

None

40MB

(2) 4M x 36

(2) 1M x 36

None

None

40MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

40MB

(2) 1M x 36

(2) 2M x 36

(2) 2M x 36

None

40MB

(2) 1M x 36

(2) 4M x 36

None

None

DRAM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

44MB

(2) 4M x 36

(2) 512K x 36

(2) 512K x 36

(2) 512K x 36

48MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

None

48MB

(2) 4M x 36

(2) 2M x 36

None

None

48MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

None

48MB

(2) 2M x 36

(2) 4M x 36

None

None

50MB

(2) 256K x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

52MB

(2) 512K x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

56MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

56MB

(2) 1M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

None

None

64MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

None

None

64MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

66MB

(2) 8M x 36

(2) 256K x 36

None

None

66MB

(2) 256K x 36

(2) 4M x 36

(2) 4M x 36

None

66MB

(2) 256K x 36

(2) 8M x 36

None

None

68MB

(2) 8M x 36

(2) 256K x 36

(2) 256K x 36

None

68MB

(2) 8M x 36

(2) 512K x 36

None

None

68MB

(2) 512K x 36

(2) 4M x 36

(2) 4M x 36

None

68MB

(2) 512K x 36

(2) 8M x 36

None

None

70MB

(2) 8M x 36

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

72MB

(2) 8M x 36

(2) 512K x 36

(2) 512K x 36

None

72MB

(2) 8M x 36

(2) 1M x 36

None

None

72MB

(2) 1M x 36

(2) 4M x 36

(2) 4M x 36

None

72MB

(2) 1M x 36

(2) 8M x 36

None

None

76MB

(2) 8M x 36

(2) 512K x 36

(2) 512K x 36

(2) 512K x 36

80MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

None

80MB

(2) 8M x 36

(2) 2M x 36

None

None

80MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

80MB

(2) 2M x 36

(2) 4M x 36

(2) 4M x 36

None

80MB

(2) 2M x 36

(2) 8M x 36

None

None

88MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

96MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

None

96MB

(2) 8M x 36

(2) 4M x 36

None

None

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

None

96MB

(2) 4M x 36

(2) 8M x 36

None

None

98MB

(2) 256K x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

100MB

(2) 512K x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

104MB

(2) 1M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

112MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

112MB

(2) 2M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

None

DRAM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

128MB

(2) 8M x 36

(2) 8M x 36

None

None

128MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

128MB

(2) 16M x 36

None

None

None

130MB

(2) 256K x 36

(2) 8M x 36

(2) 8M x 36

None

130MB

(2) 16M x 36

(2) 256K x 36

None

None

132MB

(2) 512K x 36

(2) 8M x 36

(2) 8M x 36

None

132MB

(2) 16M x 36

(2) 256K x 36

(2) 256K x 36

None

134MB

(2) 16M x 36

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

136MB

(2) 1M x 36

(2) 8M x 36

(2) 8M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

None

None

144MB

(2) 2M x 36

(2) 8M x 36

(2) 8M x 36

None

144MB

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

None

152MB

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

160MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

160MB

(2) 4M x 36

(2) 8M x 36

(2) 8M x 36

None

192MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

None

194MB

(2) 256K x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

196MB

(2) 512K x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

200MB

(2) 1M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

208MB

(2) 2M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

224MB

(2) 4M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

256MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

None

None

384MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

None

512MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

CACHE CONFIGURATION

Size

Bank 0

256KB

(8) 32K x 8

512KB

(8) 64K x 8

CACHE JUMPER CONFIGURATION

Size

J9

256KB

Pins 1 & 2 closed

512KB

Pins 2 & 3 closed

CPU SPEED SELECTION

CPU speed

Clock speed

J7

75MHz

50MHz

Open

90MHz

60MHz

Open

100MHz

50MHz

Closed

100MHz

66MHz

Open

DMA CHANNEL SELECTION

Channel

J16

J17

»

Disabled

Open

Open



1

Pins 1 & 2 closed

Pins 1 & 2 closed



3

Pins 2 & 3 closed

Pins 2 & 3 closed

3.3V POWER SUPPLY SELECTION

Setting

J1

J2

J3

J11

J19

Internal

Open

Open

1&2, 3&4, 5&6

Open

1&2, 3&4, 5&6

External

1&2, 3&4, 5&6

1&2, 3&4, 5&6

Open

1&2, 3&4, 5&6

Open

Note: Pins designated should be in the closed position. If external setting is selected, connect power cables to P5 and P6.
