ASUS COMPUTER INTERNATIONAL
P/E-P55T2P4D
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/180/200MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
512MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Unidentified |
|
Dimensions |
355mm x 304mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), cache slot, IR connector, MediaBus slot |
|
NPU Options |
None |
|

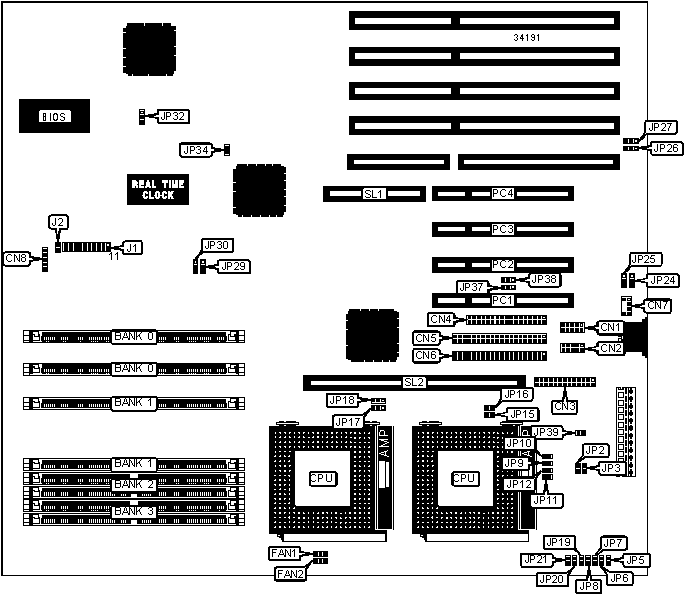

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 2 |
CN1 |
Turbo LED |
J1 pins 2 & 3 |
|
Serial port 1 |
CN2 |
Green PC connector |
J1 pins 4 & 5 |
|
Parallel port |
CN3 |
Reset switch |
J1 pins 9 & 10 |
|
Floppy drive interface |
CN4 |
Power LED & keylock |
J1 pins 11 - 15 |
|
IDE interface 1 |
CN5 |
Speaker |
J1 pins 17 - 20 |
|
IDE interface 2 |
CN6 |
IDE interface LED |
J2 |
|
PS/2 mouse interface |
CN7 |
32-bit PCI slots |
PC1 – PC4 |
|
IR connector |
CN8 |
MediaBus slot |
SL1 |
|
Chassis fan power |
FAN1 |
Cache slot |
SL2 |
|
Chassis fan power |
FAN2 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Flash BIOS write protect disabled |
JP32 |
Pins 1 & 2 closed |
|
Flash BIOS write protect enabled |
JP32 |
Pins 2 & 3 closed | |
|
» |
CMOS memory normal operation |
JP34 |
Open |
|
CMOS memory clear |
JP34 |
Closed | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
8MB |
(2) 1M x 36 |
None |
None |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
None |
|
16MB |
(2) 2M x 36 |
None |
None |
None |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
None |
None |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
32MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
None |
|
32MB |
(2) 4M x 36 |
None |
None |
None |
|
40MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
None |
None |
|
48MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
None |
None |
|
48MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
56MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
64MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
None |
|
64MB |
(2) 8M x 36 |
None |
None |
None |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
None |
None |
|
80MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
80MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
None |
None |
|
88MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
None |
None |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
112MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
128MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
None |
|
128MB |
(2) 16M x 36 |
None |
None |
None |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
None |
None |
|
144MB |
(2) 16M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
None |
None |
|
152MB |
(2) 16M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
160MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
None |
None |
|
176MB |
(2) 16M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
None |
None |
|
192MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
224MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
256MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
None |
None |
|
384MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
None |
|
512MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. | ||||
|
CACHE CONFIGURATION | |
|
Size |
SL1 |
|
256KB |
256KB module installed |
|
512KB |
512KB module installed |
|
CACHE JUMPER CONFIGURATION | |
|
Size |
JP39 |
|
256KB |
Pins 2 & 3 closed |
|
512KB |
Pins 1 & 2 closed |
|
CPU SPEED SELECTION | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP15 |
JP16 |
JP29 |
JP30 |
|
75MHz |
50MHz |
1.5x |
Open |
Open |
2 & 3 |
2 & 3 |
|
90MHz |
60MHz |
1.5x |
Open |
Open |
1 & 2 |
2 & 3 |
|
100MHz |
66MHz |
1.5x |
Open |
Open |
2 & 3 |
1 & 2 |
|
120MHz |
60MHz |
2x |
Open |
Closed |
1 & 2 |
2 & 3 |
|
133MHz |
66MHz |
2x |
Open |
Closed |
2 & 3 |
1 & 2 |
|
150MHz |
60MHz |
2.5x |
Closed |
Closed |
1 & 2 |
2 & 3 |
|
166MHz |
66MHz |
2.5x |
Closed |
Closed |
2 & 3 |
1 & 2 |
|
180MHz |
60MHz |
3x |
Closed |
Open |
1 & 2 |
2 & 3 |
|
200MHz |
66MHz |
3x |
Closed |
Open |
2 & 3 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | ||||||
|
CPU TYPE SELECTION | ||
|
Type |
JP18 | |
|
Single CPU installed |
Pins 2 & 3 closed | |
| » |
Dual CPUs installed |
Pins 1 & 2 closed |
|
CPU VOLTAGE SELECTION | |||||||
|
Voltage |
JP2 |
JP3 |
JP5 |
JP6 |
JP7 |
JP8 |
JP9 |
|
Single power (STD) |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
Single power (VRE) |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
Split power 2.5v |
Open |
Closed |
Open |
Open |
Open |
Closed |
Closed |
|
Split power 2.7v |
Open |
Closed |
Open |
Open |
Closed |
Open |
Closed |
|
Split power 2.8v |
Open |
Closed |
Open |
Open |
Open |
Open |
Closed |
|
Split power 2.88v |
Open |
Closed |
Open |
Closed |
Open |
Open |
Closed |
|
CPU VOLTAGE SELECTION (CON’T) | |||||||
|
Voltage |
JP10 |
JP11 |
JP12 |
JP17 |
JP19 |
JP20 |
JP21 |
|
Single power (STD) |
Open |
Closed |
Closed |
1 & 2 |
Open |
Open |
Closed |
|
Single power (VRE) |
Open |
Closed |
Closed |
1 & 2 |
Open |
Closed |
Open |
|
Split power 2.5v |
Closed |
Open |
Open |
2 & 3 |
Open |
Open |
Open |
|
Split power 2.7v |
Closed |
Open |
Open |
2 & 3 |
Open |
Open |
Open |
|
Split power 2.8v |
Closed |
Open |
Open |
2 & 3 |
Closed |
Open |
Open |
|
Split power 2.88v |
Closed |
Open |
Open |
2 & 3 |
Open |
Open |
Open |
|
Note: Pins designated should be in the closed position. | |||||||
|
DMA CHANNEL SELECTION | |||
|
Channel |
JP26 |
JP27 | |
|
1 |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
| » |
3 |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
SERIAL PORT 2 SELECTION | ||
|
Setting |
JP24 |
JP25 |
|
Used at COM2 |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
Used as IR connector |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
PCI SLOT 1 SELECTION | |||
|
Setting |
JP37 |
JP38 | |
| » |
Master |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Slave |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
