ACER, INC.
AX65
|
 Device Type  |
 Mainboard  |
|
 Processor  |
 Pentium Pro  |
|
 Processor Speed  |
 150/166/180/200MHz  |
|
 Chip Set  |
 Intel  |
|
 Video Chip Set  |
 None  |
|
 Maximum Onboard Memory  |
 512MB (EDO supported)  |
|
 Maximum Video Memory  |
 None  |
|
 Cache  |
 256/512KB (located on Pentium Pro CPU)  |
|
 BIOS  |
 Award  |
|
 Dimensions  |
 305mm x 244mm  |
|
 I/O Options  |
 32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB interface, ATX power connector  |
|
 NPU Options  |
 None  |

|
 CONNECTIONS  |
|||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|

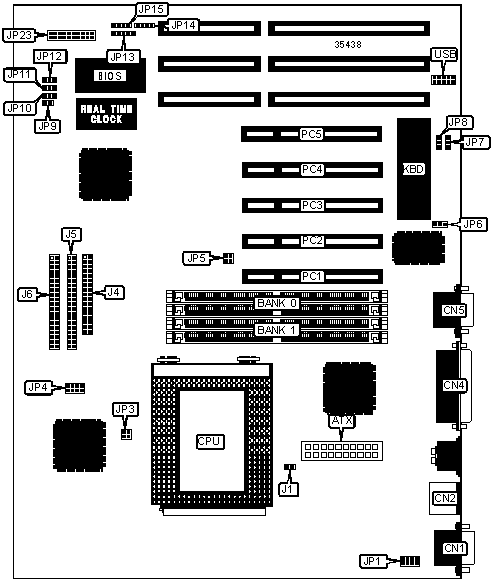

 ATX power connector  |
 ATX  |
 IDE interface LED  |
 JP15  |
|
 Serial port 1  |
 CN1  |
 Soft off power supply  |
 JP23/pins 1 & 2  |
|
 PS/2 mouse port  |
 CN2  |
 Power LED  |
 JP23/pins 3 - 5  |
|
 Parallel port  |
 CN4  |
 Speaker  |
 JP23/pins 7 - 10  |
|
 Serial port 2  |
 CN5  |
 Green PC LED  |
 JP23/pins 12 & 13  |
|
 Chassis fan power  |
 J1  |
 Green PC connector  |
 JP23/pins 15 - 17  |
|
 Floppy drive interface  |
 J4  |
 Reset switch  |
 JP23/pins 19 & 20  |
|
 IDE interface 1  |
 J5  |
 32-bit PCI slots  |
 PC1 - PC5  |
|
 IDE interface 2  |
 J6  |
 USB interface  |
 USB  |
|
 IR connector  |
 JP13  |

  |

  |
|
 USER CONFIGURABLE SETTINGS  |
|||
|
 Function  |
 Label  |
 Position  |
|
|
 »  |
 On board I/O enabled  |
 JP6  |
 Pins 2 & 3 closed  |
|

  |
 On board I/O disabled  |
 JP6  |
 Pins 1 & 2 closed  |
|
 »  |
 Keyboard clock select ISA clock  |
 JP7  |
 Pins 2 & 3 closed  |
|

  |
 Keyboard clock select 12MHz  |
 JP7  |
 Pins 1 & 2 closed  |
|
 »  |
 PS/2 mouse enabled  |
 JP8  |
 Pins 1 & 2 closed  |
|

  |
 PS/2 mouse disabled  |
 JP8  |
 Pins 2 & 3 closed  |
|
 »  |
 Factory configured - do not alter  |
 JP9  |
 Unidentified  |
|
 »  |
 CMOS memory normal operation  |
 JP10  |
 Pins 2 & 3 closed  |
|

  |
 CMOS memory clear  |
 JP10  |
 Pins 1 & 2 closed  |
|

  |
 Power switch type select toggle  |
 JP14  |
 Pins 2 & 3 closed  |
|

  |
 Power switch type select momentary  |
 JP14  |
 Pins 1 & 2, 3 & 4 closed  |
|
 SIMM CONFIGURATION  |
||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 8MB  |
 (2) 1M x 36  |
 None  |
|
 16MB  |
 (2) 2M x 36  |
 None  |
|
 16MB  |
 (2) 1M x 36  |
 (2) 1M x 36  |
|
 24MB  |
 (2) 2M x 36  |
 (2) 1M x 36  |
|
 32MB  |
 (2) 4M x 36  |
 None  |
|
 32MB  |
 (2) 2M x 36  |
 (2) 2M x 36  |
|
 40MB  |
 (2) 4M x 36  |
 (2) 1M x 36  |
|
 48MB  |
 (2) 4M x 36  |
 (2) 2M x 36  |
|
 64MB  |
 (2) 8M x 36  |
 None  |
|
 64MB  |
 (2) 4M x 36  |
 (2) 4M x 36  |
|
 72MB  |
 (2) 8M x 36  |
 (2) 1M x 36  |
|
 SIMM CONFIGURATION (CON'T)  |
||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 80MB  |
 (2) 8M x 36  |
 (2) 2M x 36  |
|
 96MB  |
 (2) 8M x 36  |
 (2) 4M x 36  |
|
 128MB  |
 (2) 8M x 36  |
 (2) 8M x 36  |
|
 128MB  |
 (2) 16M x 36  |
 None  |
|
 136MB  |
 (2) 16M x 36  |
 (2) 1M x 36  |
|
 144MB  |
 (2) 16M x 36  |
 (2) 2M x 36  |
|
 160MB  |
 (2) 16M x 36  |
 (2) 4M x 36  |
|
 192MB  |
 (2) 16M x 36  |
 (2) 8M x 36  |
|
 256MB  |
 (2) 16M x 36  |
 (2) 16M x 36  |
|
 256MB  |
 (2) 32M x 36  |
 None  |
|
 264MB  |
 (2) 32M x 36  |
 (2) 1M x 36  |
|
 272MB  |
 (2) 32M x 36  |
 (2) 2M x 36  |
|
 288MB  |
 (2) 32M x 36  |
 (2) 4M x 36  |
|
 320MB  |
 (2) 32M x 36  |
 (2) 8M x 36  |
|
 384MB  |
 (2) 32M x 36  |
 (2) 16M x 36  |
|
 512MB  |
 (2) 32M x 36  |
 (2) 32M x 36  |
|
 Note: Board accepts EDO memory.  |
||
|
 CACHE CONFIGURATION  |
|
 Note: 256KB/512KB cache is located on the Pentium Pro CPU.  |
|
 CPU SPEED SELECTION  |
|||||
|
 CPU speed  |
 Clock speed  |
 Multiplier  |
 JP3  |
 JP4  |
 JP5  |
|
 150MHz  |
 60MHz  |
 2.5x  |
 3 & 4  |
 3 & 4, 5 & 6, 7 & 8  |
 3 & 4  |
|
 166MHz  |
 66MHz  |
 2.5x  |
 1 & 2  |
 3 & 4, 5 & 6, 7 & 8  |
 1 & 2  |
|
 180MHz  |
 60MHz  |
 3x  |
 3 & 4  |
 1 & 2, 3 & 4, 7 & 8  |
 3 & 4  |
|
 200MHz  |
 66MHz  |
 3x  |
 1 & 2  |
 1 & 2, 3 & 4, 7 & 8  |
 1 & 2  |
|
 Note: Pins designated should be in the closed position.  |
|||||
|
 CPU VOLTAGE SELECTION  |
||
|
 Voltage  |
 JP1  |
|
|
 »  |
 Auto detect  |
 Open  |
|

  |
 2.1v  |
 Pins 1 & 2 closed  |
|

  |
 2.2v  |
 Pins 3 & 4 closed  |
|

  |
 2.3v  |
 Pins 1 & 2, 3 & 4 closed  |
|

  |
 2.4v  |
 Pins 5 & 6 closed  |
|

  |
 2.5v  |
 Pins 1 & 2, 5 & 6 closed  |
|

  |
 2.6v  |
 Pins 3 & 4, 5 & 6 closed  |
|

  |
 2.7v  |
 Pins 1 & 2, 3 & 4, 5 & 6 closed  |
|

  |
 2.8v  |
 Pins 7 & 8 closed  |
|

  |
 2.9v  |
 Pins 1 & 2, 7 & 8 closed  |
|

  |
 3.0v  |
 Pins 3 & 4, 7 & 8 closed  |
|

  |
 3.1v  |
 Pins 1 & 2, 3 & 4, 7 & 8 closed  |
|

  |
 3.2v  |
 Pins 5 & 6, 7 & 8 closed  |
|

  |
 3.3v  |
 Pins 1 & 2, 5 & 6, 7 & 8 closed  |
|

  |
 3.4v  |
 Pins 3 & 4, 5 & 6, 7 & 8 closed  |
|

  |
 3.5v  |
 Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed  |
|
 FLASH BIOS SELECTION  |
|||
|
 Setting  |
 JP11  |
 JP12  |
|
|
 »  |
 Enabled  |
 Pins 1 & 2 closed  |
 Pins 1 & 2 closed  |
|

  |
 Disabled  |
 Pins 2 & 3 closed  |
 Pins 2 & 3 closed  |
