BOSER TECHNOLOGY CO., LTD.

HS-3100

Device Type

Mainboard

Processor

80386SX

Processor Speed

40MHz

Chip Set

ALI M6117C

Maximum Onboard Memory

64MB (EDO supported)

Cache

None

BIOS

AMI

Dimensions

185mm x 122mm

I/O Options

Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), PC/104 connectors (2)

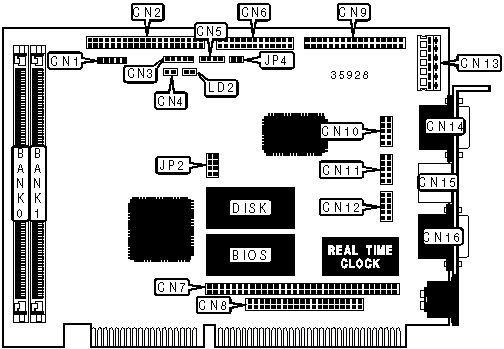

CONNECTIONS

Purpose

Location

Purpose

Location

Auxiliary keyboard connector

CN1

GPO connector

CN10

IDE interface

CN2

GPI connector

CN11

Power LED & keylock

CN3

Serial port 2 (internal)

CN12

Reset switch

CN4

Power connector

CN13

Speaker

CN5

Serial port 1

CN14

Parallel port

CN6

PS/2 mouse port

CN15

PC/104 connector

CN7

Serial port 2

CN16

PC/104 connector

CN8

Watchdog connector

JP4

Floppy drive interface

CN9

IDE interface LED

LD2

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

On board I/O enabled

JP1

Pins 1 & 2 closed



On board I/O disabled

JP1

Pins 2 & 3 closed

»

BIOS type select 29C010

JP3

Pins 1 & 2 closed



BIOS type select 28F010

JP3

Pins 2 & 3 closed

Note: The location of the above jumpers are unidentified.

SIMM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(1) 256K x 36

None

2MB

(1) 512K x 36

None

4MB

(1) 1M x 36

None

4MB

(1) 512K x 36

(1) 512K x 36

5MB

(1) 1M x 36

(1) 256K x 36

6MB

(1) 1M x 36

(1) 512K x 36

8MB

(1) 2M x 36

None

9MB

(1) 2M x 36

(1) 256K x 36

10MB

(1) 2M x 36

(1) 512K x 36

12MB

(1) 2M x 36

(1) 1M x 36

16MB

(1) 4M x 36

None

16MB

(1) 2M x 36

(1) 2M x 36

17MB

(1) 4M x 36

(1) 256K x 36

18MB

(1) 4M x 36

(1) 512K x 36

20MB

(1) 4M x 36

(1) 1M x 36

24MB

(1) 4M x 36

(1) 2M x 36

32MB

(1) 8M x 36

None

32MB

(1) 4M x 36

(1) 4M x 36

SIMM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

33MB

(1) 8M x 36

(1) 256K x 36

34MB

(1) 8M x 36

(1) 512K x 36

36MB

(1) 8M x 36

(1) 1M x 36

40MB

(1) 8M x 36

(1) 2M x 36

48MB

(1) 8M x 36

(1) 4M x 36

64MB

(1) 8M x 36

(1) 8M x 36

Note: Board accepts EDO memory.

DISK ON CHIP SELECTION

Address

JP2



D000

Pins 1 & 2 closed

»

D800

Pins 3 & 4 closed



E000

Pins 5 & 6 closed



E800

Pins 7 & 8 closed
