DTK COMPUTER, INC.

PTM-1030

Processor

80286

Processor Speed

10MHz

Chip Set

VLSI

Max. onboard DRAM

1MB

Cache

None

BIOS

DTK

Dimensions

220mm x 218mm

I/O Options

None

NPU Options

80287

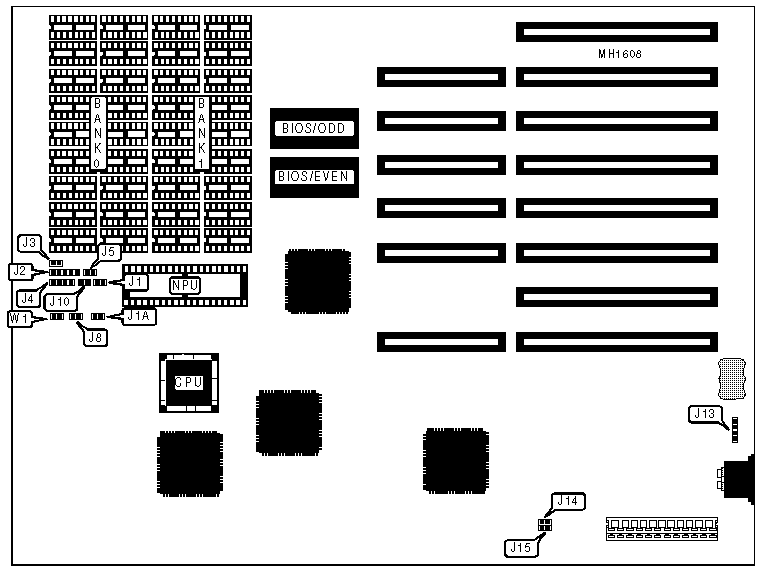

CONNECTIONS

Purpose

Location

Purpose

Location

Turbo switch

J1

Reset switch

J5

Power LED & keylock

J2

Turbo LED

J10

Speaker

J4

External battery

J13

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Monitor type select monochrome

J3

Open



Monitor type select color

J3

Closed

»

Select 0 wait state

J8

Closed



Select 1 wait states

J8

Open

»

CPU speed normal

J1A

Closed



CPU speed high

J1A

Open

»

Factory configured - do not alter

W1

N/A

Note:Turbo speed can also be activated by pressing Ctrl, Alt and - simultaneously.

DRAM CONFIGURATION

Size

Bank 0

Bank 1

J14

J15

512KB

(18) 41256

None

Closed

Closed

640KB

(18) 41256

(18) 4164

Closed

Open

1MB

(18) 41256

(18) 41256

Open

Closed

Note:Do not allow both J14 and J15 to be open at the same time.
