DELL COMPUTER CORPORATION

POWEREDGE 2100

Processor

Pentium Pro

Processor Speed

180/200MHz

Chip Set

Unidentified

Video Chip Set

Unidentified

Maximum Onboard Memory

256MB (EDO supported)

Maximum Video Memory

1MB

Cache

256KB (located on Pentium Pro CPU)

BIOS

Unidentified

Dimensions

305mm x 244mm

I/O Options

32-bit PCI slots (3), floppy drive interface, Ultra-Wide SCSI interface, parallel port, PS/2 mouse port, serial ports (2), VGA port, ATX power connector, Server Management connector

NPU Options

None

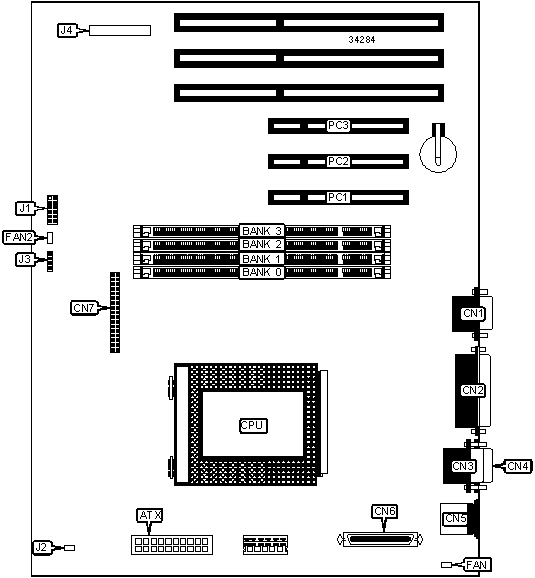

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

Floppy drive interface

CN7

VGA port

CN1

Chassis fan power

FAN

Parallel port

CN2

Chassis fan power

FAN2

Serial port 2

CN3

Front panel connector

J2

Serial port 1

CN4

Server Management connector

J4

PS/2 mouse port

CN5

32-bit PCI slots

PC1 – PC3

Ultra-Wide SCSI interface

CN6



USER CONFIGURABLE SETTINGS

Function

Label

Position



System normal boot

J1/pins 1 & 2

Open



System boot from BIOS expansion card

J1/pins 1 & 2

Closed



On board video enabled

J1/pins 3 & 4

Closed



On board video disabled

J1/pins 3 & 4

Open



EISA configuration normal operation

J1/pins 5 & 6

Open



EISA configuration clear

J1/pins 5 & 6

Closed



Password enabled

J1/pins 7 & 8

Closed



Password disabled

J1/pins 7 & 8

Open

»

Factory configured - do not alter

J3

Unidentified

DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

16MB

(1) 2M x 64

None

None

None

32MB

(1) 4M x 64

None

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

None

64MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

None

128MB

(1) 16M x 64

None

None

None

128MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

144MB

(1) 16M x 64

(1) 2M x 64

None

None

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

None

160MB

(1) 16M x 64

(1) 4M x 64

None

None

176MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

None

224MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

None

Note: Board accepts EDO memory.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.

VIDEO MEMORY CONFIGURATION

Note: Board is factory installed with 1MB video memory and is not configurable.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

J1/pins 9 & 10

J1/pins 11 & 12

180MHz

60MHz

3x

Closed

Open

200MHz

66MHz

3x

Open

Closed
