DIAMOND FLOWER, INC.

E586-IPE

Device Type

Mainboard

Processor

Pentium

Processor Speed

60/66MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

128MB

Maximum Video Memory

None

Cache

256/512KB

BIOS

Award

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (4), IDE interface, PS/2 mouse interface

NPU Options

None

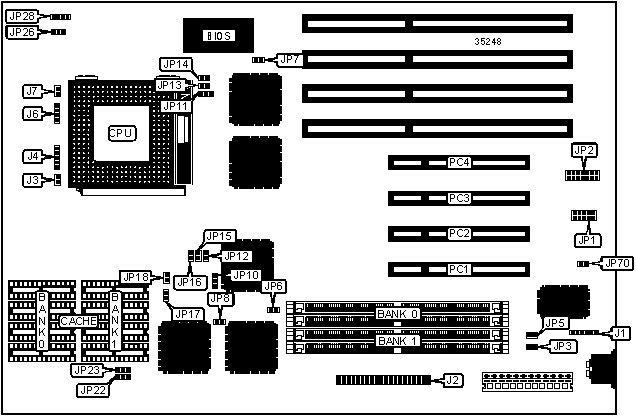

CONNECTIONS

Purpose

Location

Purpose

Location

PS/2 mouse interface

J1

Reset switch

J7

IDE interface

J2

Legacy connector

JP2

IDE interface LED

J3

Chassis fan power

JP28

Power LED & keylock

J4

32-bit PCI slots

PC1 – PC4

Speaker

J6



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

PS/2 mouse IRQ12 enabled

JP7

Closed



PS/2 mouse IRQ12 disabled

JP7

Open

»

Monitor type select color

JP11

Pins 1 & 2 closed



Monitor type select monochrome

JP11

Pins 2 & 3 closed

»

Factory configured - do not alter

JP10

Pins 2 & 3 closed

»

Factory configured - do not alter

JP12

Closed

»

Password normal operation

JP13

Open



Password clear

JP13

Closed

»

Factory configured - do not alter

JP14

Open

»

Cache type select write back

JP15

Open



Cache type select write through

JP15

Closed

»

Factory configured - do not alter

JP16

Open

»

Factory configured - do not alter

JP17

Open

»

BIOS type select flash

JP26

Pins 1 & 2 closed



BIOS type select EPROM

JP26

Pins 2 & 3 closed

»

Factory configured - do not alter

JP70

Open

SIMM CONFIGURATION

Size

Bank 0

Bank 1

2MB

(2) 256K x 36

None

4MB

(2) 512K x 36

None

4MB

(2) 256K x 36

(2) 256K x 36

6MB

(2) 512K x 36

(2) 256K x 36

8MB

(2) 1M x 36

None

8MB

(2) 512K x 36

(2) 512K x 36

10MB

(2) 1M x 36

(2) 256K x 36

12MB

(2) 512K x 36

(2) 1M x 36

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

SIMM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

18MB

(2) 2M x 36

(2) 256K x 36

20MB

(2) 512K x 36

(2) 2M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

34MB

(2) 4M x 36

(2) 256K x 36

36MB

(2) 512K x 36

(2) 4M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 2M x 36

(2) 4M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

66MB

(2) 8M x 36

(2) 256K x 36

68MB

(2) 512K x 36

(2) 8M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 2M x 36

(2) 8M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

CACHE CONFIGURATION

Size

Bank 0

Bank 1

256KB

(4) 32K x 8

(4) 32K x 8

512KB

(4) 64K x 8

(4) 64K x 8

CACHE JUMPER CONFIGURATION

Size

JP22

JP23

None

Pins 1 & 2 closed

Pins 1 & 2 closed

256KB

Pins 1 & 2 closed

Pins 2 & 3 closed

512KB

Pins 2 & 3 closed

Pins 2 & 3 closed

CACHE PARITY CONFIGURATION

Setting

JP6

JP8

»

Enabled

Closed

Closed



Disabled

Open

Open

CPU SPEED SELECTION

Speed

JP18

60MHz

Closed

66MHz

Open

ON BOARD IDE SELECTION

Setting

JP3

JP5

»

Disabled

Closed

Open



Enabled

Open

Closed

PCI SELECTION

INT

IRQ

JP1

A

15

Pins 1 & 2 closed

A

14

Pins 3 & 4 closed

B

11

Pins 5 & 6 closed

C

10

Pins 7 & 8 closed

D

9

Pins 9 & 10 closed
