GVC TECHNOLOGIES, INC.

486-33/50

Processor

80486SX/80487SX/80486DX

Processor Speed

16/20/25/33/50MHz

Chip Set

SIS

Max. Onboard DRAM

64MB

Cache

32/64/128/256KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

4167

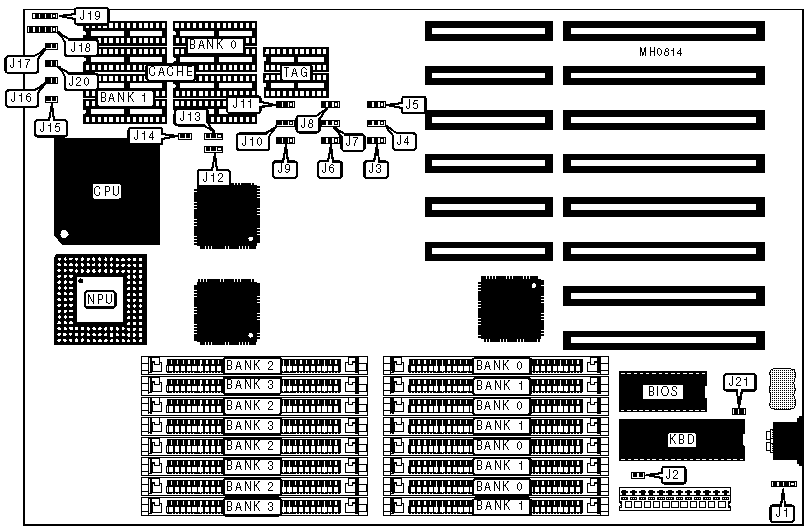

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J1

Power LED & keylock

J18

Reset switch

J15

Speaker

J19

Turbo switch

J17

Turbo LED

J20

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Factory configured - do not alter

J21

N/A

»

Monitor type select color

J2

Closed



Monitor type select monochrome

J2

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(4) 256K x 9

NONE

NONE

NONE

2MB

(4) 256K x 9

(4) 256K x 9

NONE

NONE

4MB

(4) 1M x 9

NONE

NONE

NONE

5MB

(4) 256K x 9

(4) 1 M x 9

NONE

NONE

6MB

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

NONE

8MB

(4) 1M x 9

(4) 1M x 9

NONE

NONE

9MB

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

NONE

10MB

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

12MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

NONE

16MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4M x 9

NONE

NONE

NONE

20MB

(4) 1M x 9

(4) 4M x 9

NONE

NONE

24MB

(4) 1M x 9

(4) 1M x 9

(4) 4M x 9

NONE

32MB

(4) 4M x 9

(4) 4M x 9

NONE

NONE

48MB

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

NONE

64MB

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

32KB

(4) 8K x 8

NONE

(2) 16K x 4

64KB

(4) 8K x 8

(4) 8K x 8

(2) 16K x 4

128KB

(4) 32K x 8

NONE

(2) 16K x 4

256KB

(4) 32K x 8

(4) 32K x 8

(2) 16K x 4

CACHE JUMPER CONFIGURATION

Size

J3

J4

J5

J6

J7

J8

J9

J10

J11

32KB

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

64KB

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

128KB

2 & 3

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

2 & 3

256KB

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.

CPU TYPE CONFIGURATION

Type

J12

J13

J14

80486SX

pins 2 & 3 closed

pins 2 & 3 closed

Open

80487SX

pins 1 & 2 closed

pins 2 & 3 closed

Closed

80486DX

pins 1 & 2 closed

pins 1 & 2 closed

Closed
