GIGA-BYTE TECHNOLOGY CO., INC.
GA-586AT
|
Processor |
Pentium |
|
Processor Speed |
75/90/100MHz |
|
Chip Set |
UMC |
|
Max. Onboard DRAM |
128MB |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
280mm x 220mm |
|
I/O Options |
32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2) |
|
NPU Options |
None |
|

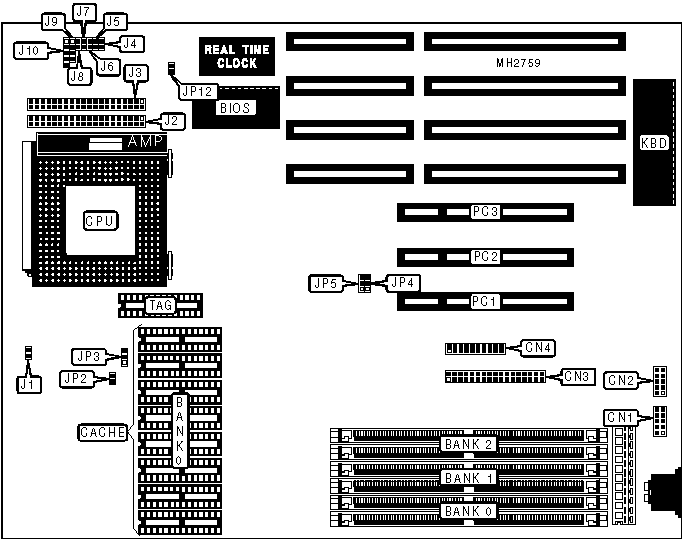

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 1 |
CN1 |
Green PC LED |
J5 |
|
Serial port 2 |
CN2 |
Reset switch |
J6 |
|
Floppy drive interface |
CN3 |
Turbo switch |
J7 |
|
Parallel port |
CN4 |
Turbo LED |
J8 |
|
Chassis fan power |
J1 |
Speaker |
J9 |
|
IDE interface (primary) |
J2 |
Power LED & keylock |
J10 |
|
IDE interface (secondary) |
J3 |
32-bit PCI slots |
PC1 - PC3 |
|
Green PC connector |
J4 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
CPU type select VR or standard CPU |
JP2 |
Open |
|
CPU type select VRE CPU |
JP2 |
Closed | |
|
» |
Factory configured - do not alter |
JP12 |
N/A |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
2MB |
(2) 256K x 36 |
NONE |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
NONE |
|
4MB |
(2) 512K x 36 |
NONE |
NONE |
|
6MB |
(2) 256K x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
NONE |
|
8MB |
(2) 512K x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
NONE |
|
10MB |
(2) 256K x 36 |
(2) 1M x 36 |
NONE |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
NONE |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
NONE |
|
12MB |
(2) 1M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
NONE |
|
16MB |
(2) 2M x 36 |
NONE |
NONE |
|
18MB |
(2) 256K x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
NONE |
|
20MB |
(2) 512K x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
20MB |
(2) 2M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
NONE |
|
32MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
NONE |
|
34MB |
(2) 256K x 36 |
(2) 4M x 36 |
NONE |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
NONE |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
NONE |
|
36MB |
(2) 4M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
NONE |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
NONE |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
NONE |
|
48MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
NONE |
|
64MB |
(2) 8M x 36 |
NONE |
NONE |
|
66MB |
(2) 256K x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
NONE |
|
68MB |
(2) 512K x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
68MB |
(2) 8M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
72MB |
(2) 1M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
NONE |
|
80MB |
(2) 2M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
80MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
NONE |
|
112MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
NONE |
(2) 8M x 36 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
256KB |
(8) 32K x 8 |
(1) 8K x 8 or (1) 32K x 8 |
|
512KB |
(8) 64K x 8 |
(1) 16K x 8 or (1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |
|
Size |
JP3 |
|
256KB |
pins 1 & 2 closed |
|
512KB |
pins 2 & 3 closed |
|
CPU SPEED CONFIGURATION | ||
|
Speed |
JP4 |
JP5 |
|
75MHz |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
90MHz |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
100MHz |
pins 1 & 2 closed |
pins 2 & 3 closed |
