FREE COMPUTER TECHNOLOGY, INC.

P5F72

Processor

CX M1/AM K5/Pentium

Processor Speed

75/90/100/120/133/150/166/200MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

128MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB

BIOS

Award

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connector, ATX power connector, soft off power supply

NPU Options

None

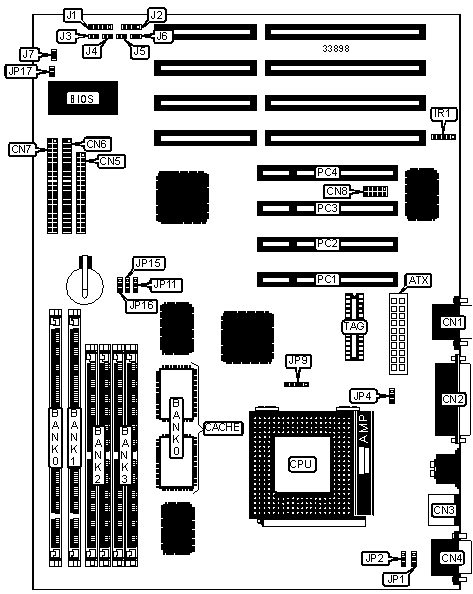

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

IR connector

IR1

Serial port 2

CN1

Power LED & keylock

J1

Parallel port

CN2

Speaker

J2

PS/2 mouse port

CN3

Green PC connector

J3

Serial port 1

CN4

Turbo LED

J4

Floppy drive interface

CN5

Reset switch

J5

IDE interface 1

CN6

IDE interface LED

J6

IDE interface 2

CN7

Soft off power supply

J7

USB connector

CN8

32-bit PCI slots

PC1 - PC4

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

JP17

Open



CMOS memory clear

JP17

Closed

DIMM/DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

None

None

(2) 1M x 32

None

8MB

(1) 1M x 64

None

None

None

16MB

(1) 1M x 64

None

None

(2) 1M x 32

16MB

None

(1) 1M x 64

(2) 1M x 32

None

16MB

None

None

(2) 2M x 32

None

16MB

None

None

(2) 1M x 32

(2) 1M x 32

16MB

(1) 2M x 64

None

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

None

24MB

(1) 1M x 64

None

None

(2) 2M x 32

24MB

(1) 2M x 64

None

None

(2) 1M x 32

24MB

None

(1) 1M x 64

(2) 2M x 32

None

24MB

None

(1) 2M x 64

(2) 1M x 32

None

24MB

None

None

(2) 2M x 32

(2) 1M x 32

24MB

(1) 2M x 64

(1) 1M x 64

None

None

32MB

(1) 2M x 64

None

None

(2) 2M x 32

32MB

None

(1) 2M x 64

(2) 2M x 32

None

32MB

None

None

(2) 4M x 32

None

32MB

None

None

(2) 2M x 32

(2) 2M x 32

32MB

(1) 4M x 64

None

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

None

40MB

(1) 1M x 64

None

None

(2) 4M x 32

40MB

(1) 4M x 64

None

None

(2) 1M x 32

40MB

None

(1) 1M x 64

(2) 4M x 32

None

40MB

None

(1) 4M x 64

(2) 1M x 32

None

40MB

None

None

(2) 4M x 32

(2) 1M x 32

DIMM/DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

40MB

(1) 4M x 64

(1) 1M x 64

None

None

48MB

(1) 2M x 64

None

None

(2) 4M x 32

48MB

(1) 4M x 64

None

None

(2) 2M x 32

48MB

None

(1) 2M x 64

(2) 4M x 32

None

48MB

None

(1) 4M x 64

(2) 2M x 32

None

48MB

None

None

(2) 4M x 32

(2) 2M x 32

48MB

(1) 4M x 64

(1) 2M x 64

None

None

64MB

(1) 4M x 64

None

None

(2) 4M x 32

64MB

None

(1) 4M x 64

(2) 4M x 32

None

64MB

None

None

(2) 8M x 32

None

64MB

None

None

(2) 4M x 32

(2) 4M x 32

64MB

(1) 8M x 64

None

None

None

64MB

(1) 4M x 64

(1) 4M x 64

None

None

72MB

(1) 1M x 64

None

None

(2) 8M x 32

72MB

(1) 8M x 64

None

None

(2) 1M x 32

72MB

None

(1) 1M x 64

(2) 8M x 32

None

72MB

None

(1) 8M x 64

(2) 1M x 32

None

72MB

None

None

(2) 8M x 32

(2) 1M x 32

72MB

(1) 8M x 64

(1) 1M x 64

None

None

80MB

(1) 2M x 64

None

None

(2) 8M x 32

80MB

(1) 8M x 64

None

None

(2) 2M x 32

80MB

None

(1) 2M x 64

(2) 8M x 32

None

80MB

None

(1) 8M x 64

(2) 2M x 32

None

80MB

None

None

(2) 8M x 32

(2) 2M x 32

80MB

(1) 8M x 64

(1) 2M x 64

None

None

96MB

(1) 4M x 64

None

None

(2) 8M x 32

96MB

(1) 8M x 64

None

None

(2) 4M x 32

96MB

None

(1) 4M x 64

(2) 8M x 32

None

96MB

None

(1) 8M x 64

(2) 4M x 32

None

96MB

None

None

(2) 8M x 32

(2) 4M x 32

96MB

(1) 8M x 64

(1) 4M x 64

None

None

128MB

(1) 8M x 64

None

None

(2) 8M x 32

128MB

None

(1) 8M x 64

(2) 8M x 32

None

128MB

None

None

(2) 8M x 32

(2) 8M x 32

128MB

(1) 8M x 64

(1) 8M x 64

None

None

Note: Board accepts EDO memory. Banks 0 & 1, 2 & 3 are interchangeable if only DIMMs or SIMMs are installed.

CACHE CONFIGURATION

Size

Bank 0

TAG

256KB

(2) 32K x 32

Unidentified

512KB

(2) 64K x 32

Unidentified

CPU SPEED SELECTION (CYRIX)

CPU speed

Clock speed

Multiplier

JP9

JP11

JP15

JP16

120MHz

50MHz

2x

2 & 3

2 & 3

2 & 3

2 & 3

133MHz

55MHz

2x

2 & 3

2 & 3

2 & 3

1 & 2

150MHz

60MHz

2x

2 & 3

1 & 2

2 & 3

2 & 3

166MHz

66MHz

2x

2 & 3

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AMD)

CPU speed

Clock speed

Multiplier

JP9

JP11

JP15

JP16

75MHz

50MHz

1.5x

Open

2 & 3

2 & 3

2 & 3

90MHz

60MHz

1.5x

Open

1 & 2

2 & 3

2 & 3

100MHz

66MHz

1.5x

Open

2 & 3

1 & 2

2 & 3

120MHz

60MHz

1.5x

Open

1 & 2

2 & 3

2 & 3

133MHz

66MHz

1.5x

Open

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP9

JP11

JP15

JP16

75MHz

50MHz

1.5x

Open

2 & 3

2 & 3

2 & 3

90MHz

60MHz

1.5x

Open

1 & 2

2 & 3

2 & 3

100MHz

66MHz

1.5x

Open

2 & 3

1 & 2

2 & 3

120MHz

60MHz

2x

2 & 3

1 & 2

2 & 3

2 & 3

133MHz

66MHz

2x

2 & 3

2 & 3

1 & 2

2 & 3

150MHz

60MHz

2.5x

2 & 3, 4 & 5

1 & 2

2 & 3

2 & 3

166MHz

66MHz

2.5x

2 & 3, 4 & 5

2 & 3

1 & 2

2 & 3

200MHz

66MHz

3x

1 & 2, 4 & 5

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU TYPE SELECTION

Type

Voltage

JP4

CX M1

Single

Pins 1 & 2 closed

CX 6X86L/M2

Dual

Pins 2 & 3 closed

AM K5

Single

Pins 1 & 2 closed

AM K5 PRxx xHx

Dual

Pins 2 & 3 closed

P54C/CT/CTB

Single

Pins 1 & 2 closed

P55C

Dual

Pins 2 & 3 closed

CPU VOLTAGE SELECTION

Voltage

JP1

JP2

2.5v

Open

Pins 1 & 2 closed

2.6v

Pins 2 & 3 closed

Pins 1 & 2 closed

2.7v

Pins 1 & 2 closed

Pins 2 & 3 closed

2.8v

Open

Pins 2 & 3 closed

2.9v

Pins 2 & 3 closed

Pins 2 & 3 closed

3.2v

Pins 1 & 2 closed

Open

3.3v

Open

Open

3.5v

Pins 2 & 3 closed

Open
