HEWLETT-PACKARD COMPANY

HP VECTRA XU 6/XXX

Device Type

Mainboard

Processor

Pentium Pro

Processor Speed

150/166/180/200MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

256MB (SDRAM supported)

Maximum Video Memory

None

Cache

256KB

BIOS

Unidentified

Dimensions

305mm x 244mm

I/O Options

32-bit PCI slots (4), floppy drive interface, game/MIDI port, IDE interfaces (2), SCSI interface, External SCSI interface, parallel port, PS/2 mouse port, serial ports (2), VRM connectors (2), ATX power connector, line in, line out, microphone in, audio in – CD-ROM

NPU Options

None

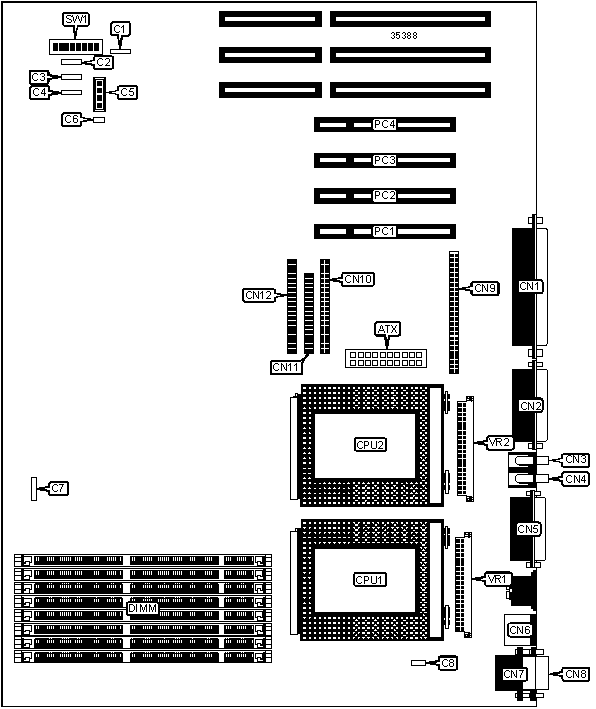

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

Line in

CN4

External start connector

C1

Game/MIDI port

CN5

Speaker

C2

PS/2 mouse port

CN6

Wavetable connector

C3

Serial port 1

CN7

Audio control panel connector

C4

Serial port 2

CN8

Audio in – CD-ROM

C5

SCSI interface

CN9

Microphone in

C6

IDE interface 1

CN10

Status panel connector

C7

Floppy drive interface

CN11

Chassis fan power

C8

IDE interface 2

CN12

External SCSI interface

CN1

32-bit PCI slots

PC1 – PC4

Parallel port

CN2

VRM connector

VR1

Line out

CN3

VRM connector

VR2

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

SW1/1

Off



CMOS memory clear

SW1/1

On

»

Password normal operation

SW1/2

Off



Password clear

SW1/2

On

»

Setup access disabled

SW1/3

Off



Setup access enabled

SW1/3

On

DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

64MB

(2) 4M x 64

None

None

None

128MB

(2) 4M x 64

(2) 4M x 64

None

None

128MB

(2) 8M x 64

None

None

None

192MB

(2) 8M x 64

(2) 4M x 64

None

None

192MB

(2) 4M x 64

(2) 4M x 64

(2) 4M x 64

None

256MB

(2) 8M x 64

(2) 4M x 64

(2) 4M x 64

None

256MB

(2) 4M x 64

(2) 4M x 64

(2) 4M x 64

(2) 4M x 64

256MB

(2) 8M x 64

(2) 8M x 64

None

None

Note: Board accepts SDRAM memory.

CACHE CONFIGURATION

Note: 256KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

SW1/4

SW1/5

SW1/6

SW1/7

SW1/8

150MHz

60MHz

2.5x

On

Off

On

Off

Off

166MHz

66MHz

2.5x

Off

Off

On

Off

Off

180MHz

60MHz

3x

On

Off

Off

On

Off

200MHz

66MHz

3x

Off

Off

Off

On

Off
