HEWLETT-PACKARD COMPANY

HP VECTRA XM 5/XXX SERIES 4

Device Type

Mainboard

Processor

Pentium

Processor Speed

75/90/100/120/133/150/166MHz

Chip Set

Intel

Video Chip Set

S3

Maximum Onboard Memory

128MB

Maximum Video Memory

2MB

Cache

256KB

BIOS

Unidentified

Dimensions

254mm x 218mm

I/O Options

Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, cache slot, VRM connector

NPU Options

None

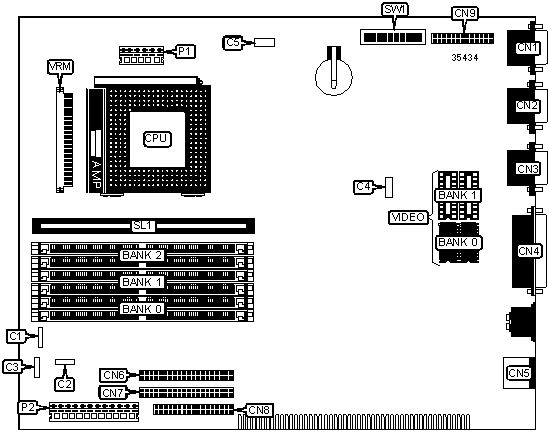

CONNECTIONS

Purpose

Location

Purpose

Location

Status panel connector

C1

PS/2 mouse port

CN5

External battery

C2

IDE interface 1

CN6

Speaker

C3

IDE interface 2

CN7

External start connector

C4

Floppy drive interface

CN8

Chassis fan power

C5

VGA feature connector

CN9

VGA port

CN1

3.3v power supply

P1

Serial port 2

CN2

5v power supply

P2

Serial port 1

CN3

Cache slot

SL1

Parallel port

CN4

VRM connector

VRM

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Password enabled

SW1/5

Off



Password disabled

SW1/5

On

»

CMOS memory normal operation

SW1/6

Off



CMOS memory clear

SW1/6

On

»

Setup access enabled

SW1/8

On



Setup access disabled

SW1/8

Off

»

Keyboard power on disabled

SW1/9

Off



Keyboard power on enabled

SW1/9

On

»

Factory configured - do not alter

SW1/10

Off

SIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(2) 1M x 36

None

None

16MB

(2) 1M x 36

(2) 1M x 36

None

16MB

(2) 2M x 36

None

None

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

32MB

(2) 2M x 36

(2) 2M x 36

None

32MB

(2) 4M x 36

None

None

48MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

64MB

(2) 4M x 36

(2) 4M x 36

None

64MB

(2) 8M x 36

None

None

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

None

128MB

(2) 16M x 36

None

None

CACHE CONFIGURATION

Size

SL1

None

Not installed

256KB

256KB module installed

VIDEO MEMORY CONFIGURATION

Size

Bank 0

Bank 1

1MB

(2) 256K x 16

None

2MB

(2) 256K x 16

(2) 256K x 16

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/7

75MHz

50MHz

1.5x

On

On

Off

Off

Off

90MHz

60MHz

1.5x

On

Off

Off

Off

On

100MHz

66MHz

1.5x

Off

On

Off

Off

On

120MHz

60MHz

2x

On

Off

On

Off

On

133MHz

66MHz

2x

Off

On

On

Off

On

150MHz

60MHz

2.5x

On

Off

On

On

On

166MHz

66MHz

2.5x

Off

On

On

On

On
