JAMICON

KMC-33K 80386-33

Processor

80386DX

Processor Speed

33MHz

Chip Set

Unknown

Max. Onboard DRAM

8MB

Cache

None

BIOS

AMI/Award

Dimensions

330mm x 218mm

I/O Options

32-bit external memory card slot

NPU Options

80387/3167

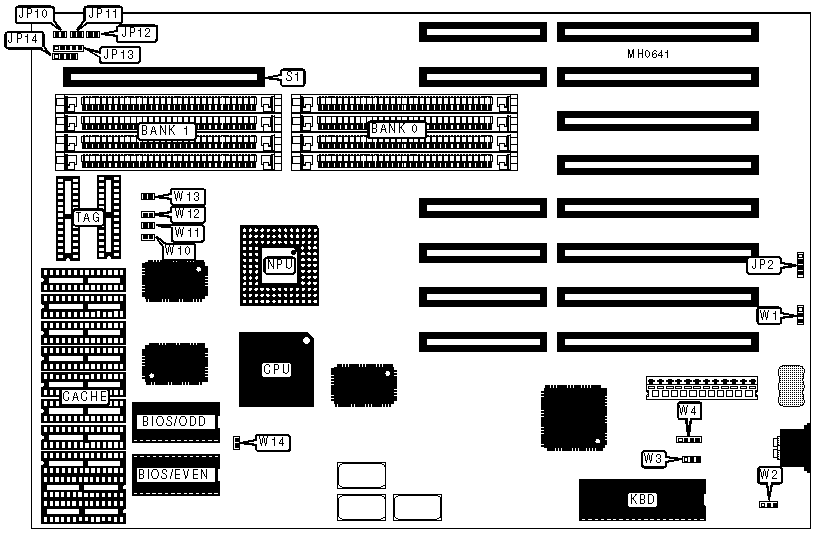

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

JP2

Power LED & keylock

JP13

Turbo LED

JP10

Speaker

JP14

Turbo switch

JP11

32-bit external memory card

S1

Reset switch

JP12



Note:All cache conections, jumpers and sizes are unidentified.

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Battery type select external

W1

pins 1 & 2 closed



Battery type select internal

W1

pins 2 & 3 closed

»

CMOS memory normal operation

W2

pins 1 & 2 closed



CMOS memory clear

W2

pins 2 & 3 closed

»

Monitor type select color

W3

Closed



Monitor type select monochrome

W3

Open

»

BIOS type select AMI

W5

pins 1 & 2 closed



BIOS type select AWARD

W5

pins 2 & 3 closed

»

Parity enabled

W9

Open



Parity disabled

W9

Closed

»

128-byte internal cache enabled, external cache disabled

W10 to W13

Closed



128-byte internal cache disabled, external cache enabled

W10 to W13

Open

»

NPU mode select asynchronous with CPU

W14

Closed



NPU mode select synchronous with CPU

W14

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

8MB

(4) 1M x 9

(4) 1M x 9

CPU SPEED CONFIGURATION

Speed

JP11

25MHz

Closed

33MHz

Open
