INTELLIGENT DATA SYSTEMS

PC-88

Processor

8088

Processor Speed

8MHz

Chip Set

None

Max. Onboard DRAM

640KB

Cache

None

BIOS

Phoenix

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

8088

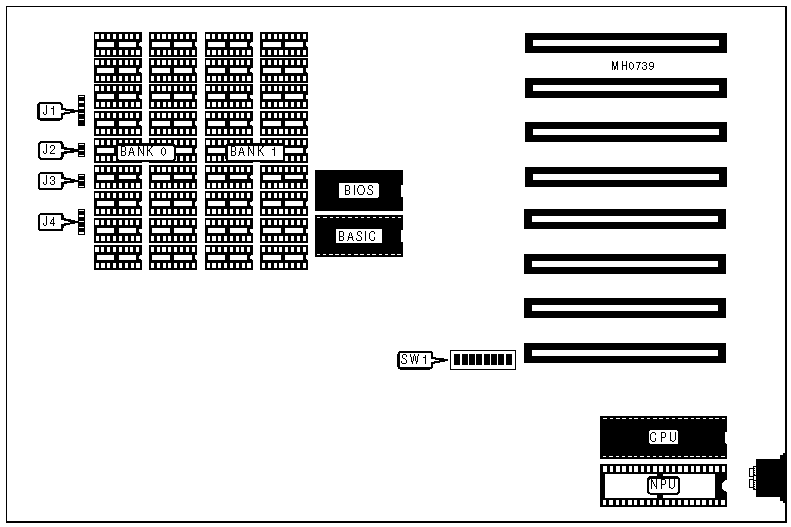

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

J1

Reset switch

J3

Speaker

J2

Turbo switch & LED

J4

USER CONFIGURABLE SETTINGS

Function

Switch

Position

»

Factory configured - do not alter

SW1/1

Off

»

NPU disabled

SW1/2

On



NPU enabled

SW1/2

Off

»

Factory configured - do not alter

SW1/3

N/A

»

Factory configured - do not alter

SW1/4

N/A

DRAM CONFIGURATION

Size

Bank 0

Bank 1

640KB

(18) 41256

(18) 4164

FLOPPY DRIVE CONFIGURATION

Drives installed

SW1/7

SW1/8

1

On

On

2

Off

On

3

On

Off

4

Off

Off

MONITOR CONFIGURATION

Type

SW1/5

SW1/6

EGA

On

On

40 x 25 color

Off

On

80 x 25 color

On

Off

Monochrome

Off

Off
