INTERCOMP, INC.

ILC VL33/486

Processor

80386DX/CX486DLC/80486SX/80486DX/80486DX2

Processor Speed

20/25/33/40/50(Internal)/50/66(Internal)MHz

Chip Set

Intercomp

Max. onboard DRAM

128MB

Cache

64/128/256KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

32-bit VESA local bus slots (2)

NPU Options

80387DX/3167

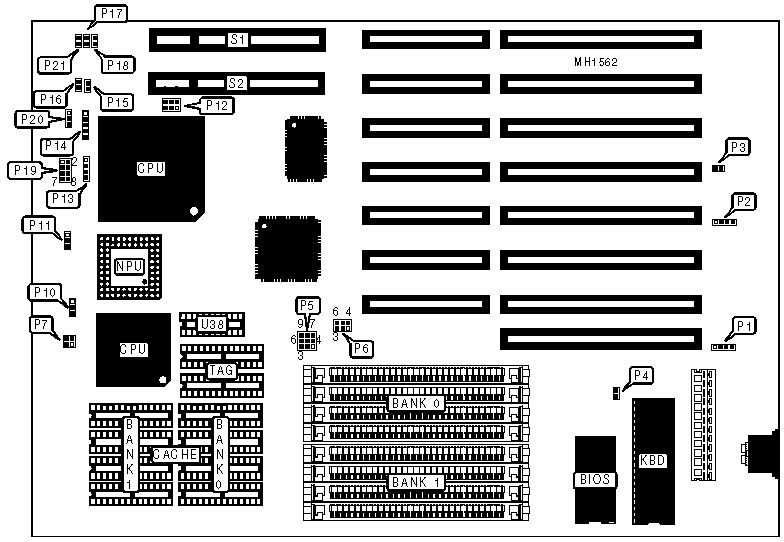

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

P1

Turbo LED

P16

Speaker

P13

Turbo switch

P17

Power LED & keylock

P14

32-bit VESA local bus slot

S1

Reset switch

P15

32-bit VESA local bus slot

S2

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

CMOS memory normal operation (Internal Battery)

P2

pins 2 & 3 closed



CMOS memory normal operation (External Battery)

P2

pins 1 & 2 closed



CMOS memory clear

P2

pins 3 & 4 closed

»

80486/50MHz CPU enabled

P3

Closed



80486/50Mhz CPU disabled

P3

Open

»

Factory configured do not alter

P4

Open

»

VESA local bus enable

P7

pins 1 & 2, 3 & 4 open



VESA local bus disable

P7

pins 1 & 2, 3 & 4 closed

»

Factory configured do not alter

P12

pins 3 & 6 closed

»

NPU disabled (80387)

P20

pins 2 & 3 closed



NPU enabled (80387)

P20

pins 1 & 2 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

5MB

(4) 256K x 9

(4) 1M x 9

8MB

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4M x 9

NONE

17MB

(4) 256K x 9

(4) 4M x 9

20MB

(4) 1M x 9

(4) 4M x 9

32MB

(4) 4M x 9

(4) 4M x 9

64MB

(4) 16M x 9

NONE

65MB

(4) 256K x 9

(4) 16M x 9

68MB

(4) 1M x 9

(4) 16M x 9

80MB

(4) 4M x 9

(4) 16M x 9

128MB

(4) 16M x 9

(4) 16M x 9

Note: If SIMMs on bank 0 are not present SIMMs located on bank 1 will be automatically re-mapped to Bank O.

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

Dirty bit (U38)

64KB

(4) 8K x 8

(4) 8K x 8

(1) 8K x 8

(1) 16K x 4

128KB

(4) 32K x 8

NONE

(1) 8K x 8

(1) 16K x 4

256KB

(4) 32K x 8

(4) 32K x 8

(1) 32K x 8

(1) 16K x 4

CACHE JUMPER CONFIGURATION

CACHE

Main Memory

P5

P6

64KB

£ 16MB

pins 1 & 2, 4 & 5, 7 & 8 closed

pins 1 & 2, 4 & 5 closed

64KB

> 16MB, £ =32MB

pins 1 & 2, 4 & 5, 7 & 8 closed

pins 1 & 2, 4 & 5 closed

128KB

£ 32MB

pins 2 & 3, 4 & 5, 8 & 9 closed

pins 2 & 3, 4 & 5 closed

128KB

> 32MB, £ =64MB

pins 2 & 3, 4 & 5, 7 & 8 closed

pins 2 & 3, 4 & 5 closed

256KB

£ 32MB

pins 2 & 3, 5 & 6, 8 & 9 closed

pins 2 & 3, 5 & 6 closed

256KB

> 32MB, £ =64MB

pins 2 & 3, 5 & 6, 7 & 8 closed

pins 2 & 3, 5 & 6 closed

CPU SPEED CONFIGURATION

Speed

P3

P19

80386DX20/25

Open

pins 1 & 5, 2 & 6, 4 & 8 closed

80386DX/33

Open

pins 1 & 5, 3 & 7, 4 & 8 closed

CX486DLC/40

Open

pins 1 & 5, 2 & 6 closed

80486SX/20

Open

pins 2 & 6, 3 & 7 closed

80486SX/25

Open

pins 2 & 6, 4 & 8 closed

80486DX25

Open

pins 2 & 6, 4 & 8 closed

80486DX33

Open

pins 3 & 7, 4 & 8 closed

80486DX50

Closed

pins 3 & 7 closed

80486DX2/66

Open

pins 3 & 7, 4 & 8 closed

CPU TYPE CONFIGURATION

CPU

P10

P11

P18

P21

80386DX

pins 1 & 2 closed

Open

Open

Closed

80486SX

pins 2 & 3 closed

pins 1 & 2 closed

Closed closed

Open

80486DX

pins 2 & 3 closed

pins 2 & 3 closed

Closed closed

Open

80486DX2

pins 2 & 3 closed

pins 2 & 3 closed

Closed closed

Open

Note:The VESA slots are disabled (by P10) when using a 80386 or CX486DLC

NPU CONFIGURATION

NPU

P20

None

pins 2 & 3 closed

80387

pins 1 & 2 closed

3167

pins 2 & 3 closed
