IBM CORPORATION

PS/VALUEPOINT 6384 425SX

Processor

80486SX

Processor Speed

25MHz

Chip Set

Intel

Max. Onboard DRAM

32MB

Cache

8KB

BIOS

IBM

Dimensions

330mm x 218mm

I/O Options

32-bit riser card slot, floppy drive interface, hard drive interface,

parallel port, PS/2 mouse port, serial ports (2), video port

NPU Options

None

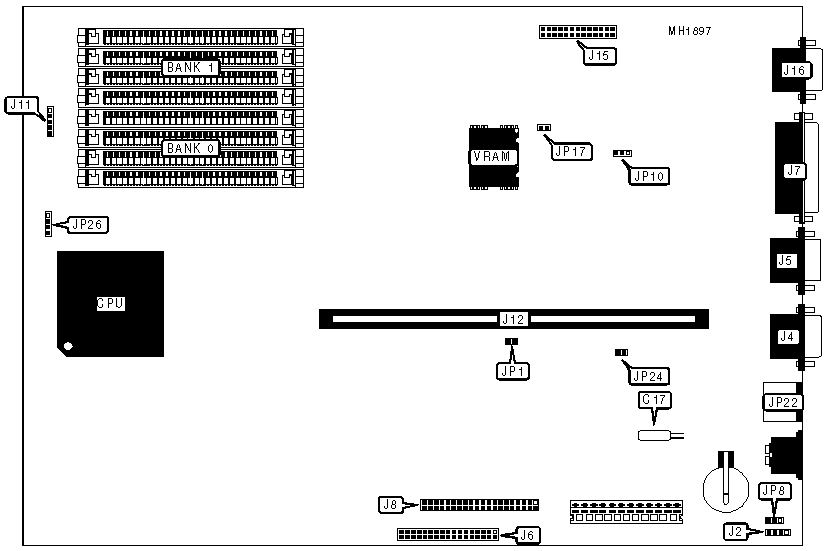

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J2

Power on LED

J11 pins 1 & 2

Serial port 1

J4

Riser card slot

J12

Serial port 2

J5

Vesa feature connector

J15

Floppy drive interface

J6

Video port

J16

Parallel port

J7

Power LED

J23

Hard drive interface

J8

PS/2 mouse port

JP22

Hard drive LED

J11 pins 4 & 5



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

IRQ9 enabled

JP1

Closed



IRQ9 disabled

JP1

Open

»

CMOS memory normal operation

JP8

pins 1 & 2 closed



CMOS memory clear

JP8

pins 2 & 3 closed

»

Mouse port enabled

JP24

Closed



Mouse port disabled

JP24

Open

»

Beeper enabled

JP26

pins 1 & 2 closed



Beeper disabled

JP26

pins 3 & 4 closed

Note:The capacitor located at C17 must be use in conjunction with JP8 to erase the password.

DRAM CONFIGURATION

Size

Bank 0

Bank 1

4MB

(4) 1M x 9

None

8MB

(4) 1M x 9

(4) 1M x 9

16MB

(1) 4M x 9

None

32MB

(1) 4M x 9

(1) 4M x 9

VIDEO CONFIGURATION

Port

JP10

JP17

»

Enabled

pins 2 & 3 closed

Open



Disabled

pins 1 & 2 closed

Closed
