ICL

ERGOPRO D5/60 REV. 1

Processor

Pentium

Processor Speed

60MHz

Chip Set

OPTI

Max. Onboard DRAM

128MB

Cache

512KB

BIOS

ICL

Dimensions

432mm x 368mm

I/O Options

PS/2 mouse port, parallel port, serial ports (2), VGA port, VGA feature connector, floppy drive interfaces (2), SCSI interface (2), microphone port, headphone port, CD ROM audio port

NPU Options

None

CONNECTIONS

Purpose

Location

Purpose

Location

Microphone port

CN1

Floppy drive interface

CN12

Headphone port

CN2

CR ROM audio connector

J1

VGA feature connector

CN3

IDE interface LED

J2

VGA port

CN4

Chassis fan power

J4

PS/2 mouse port

CN5

Chassis fan power

J7

SCSI port

CN6

Front panel connector

J8

Parallel port

CN7

Configuration lock

J9

Serial port

CN8

Reset switch

J10

SCSI connector

CN10

Speaker

J11

Floppy drive interface

CN11

Riser Card

SL1

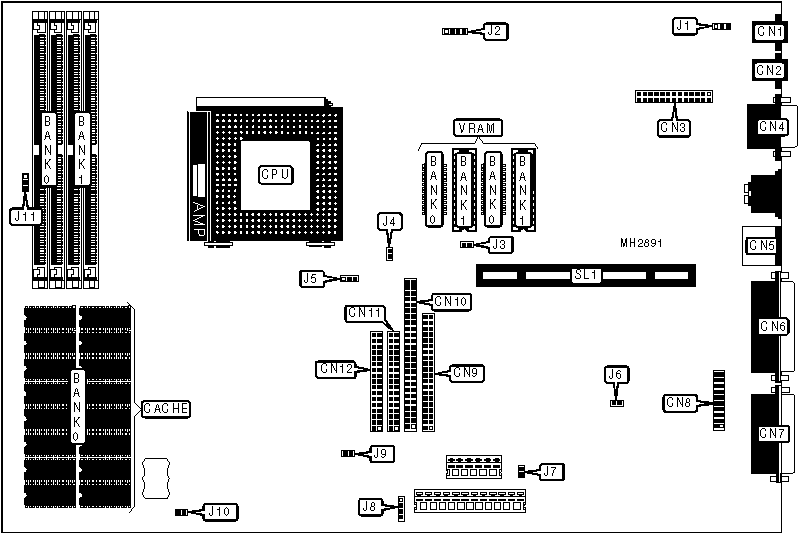

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Factory configured - do not alter

CN9

N/A

»

On board VGA enabled

J3

Open



On board VGA disabled

J3

Closed

»

CMOS memory normal operation

J5

pins 1 & 2 closed



CMOS memory clear

J5

pins 2 & 3 closed

»

Boot block disabled

J6

Open



Boot block enabled

J6

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

NONE

16MB

(2) 1M x 36

(2) 1M x 36

16MB

(2) 2M x 36

NONE

24MB

(2) 1M x 36

(2) 2M x 36

32MB

(2) 2M x 36

(2) 2M x 36

32MB

(2) 4M x 36

NONE

40MB

(2) 1M x 36

(2) 4M x 36

48MB

(2) 2M x 36

(2) 4M x 36

64MB

(2) 4M x 36

(2) 4M x 36

64MB

(2) 8M x 36

NONE

72MB

(2) 1M x 36

(2) 8M x 36

80MB

(2) 2M x 36

(2) 8M x 36

96MB

(2) 4M x 36

(2) 8M x 36

128MB

(2) 8M x 36

(2) 8M x 36

CACHE CONFIGURATION

Size

Bank 0

512KB

(16) 32K x 8

Note: Cache is factory installed and is not configurable.

VRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(2) 256K x 16

NONE

2MB

(2) 256K x 16

(2) 256K x 16
